Product description:

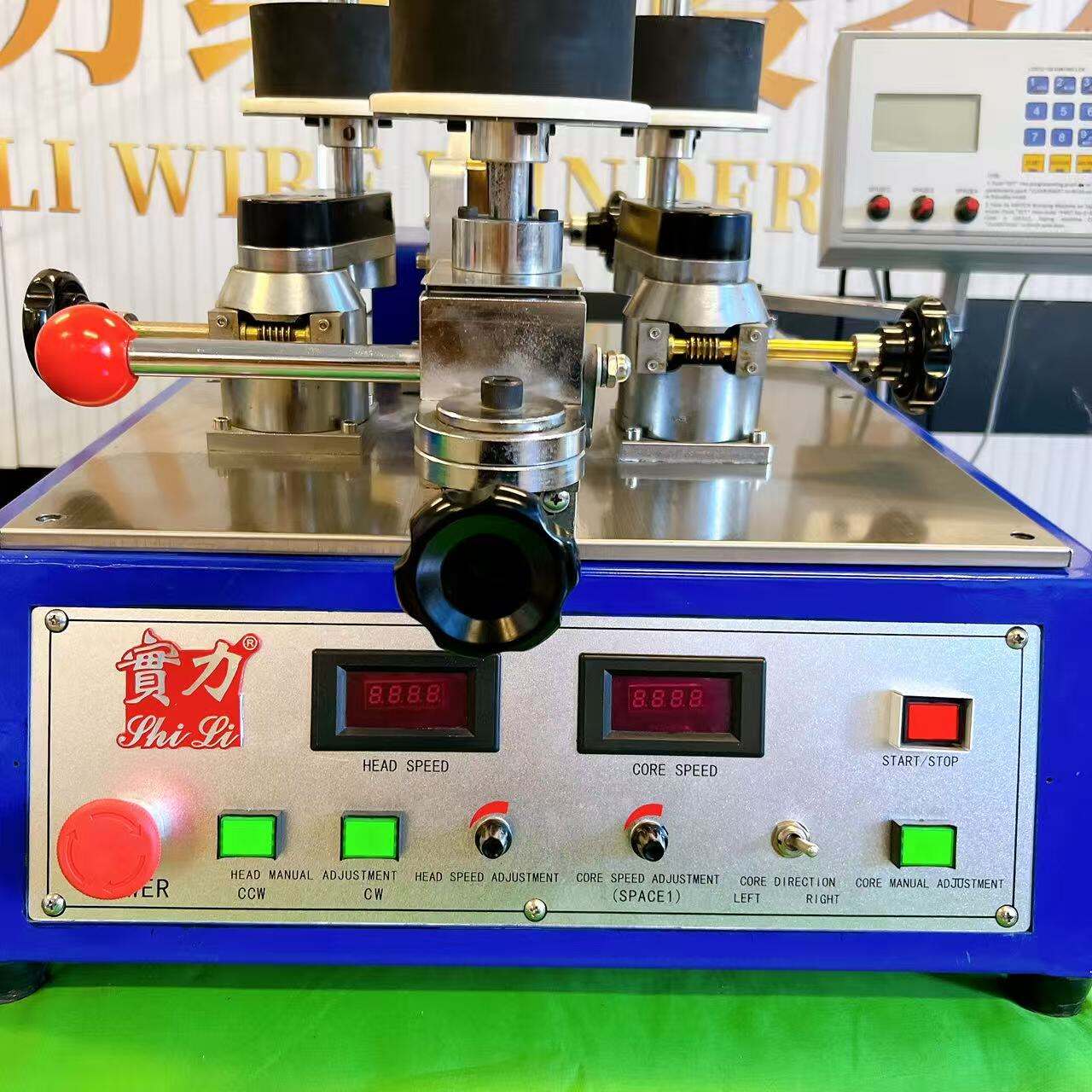

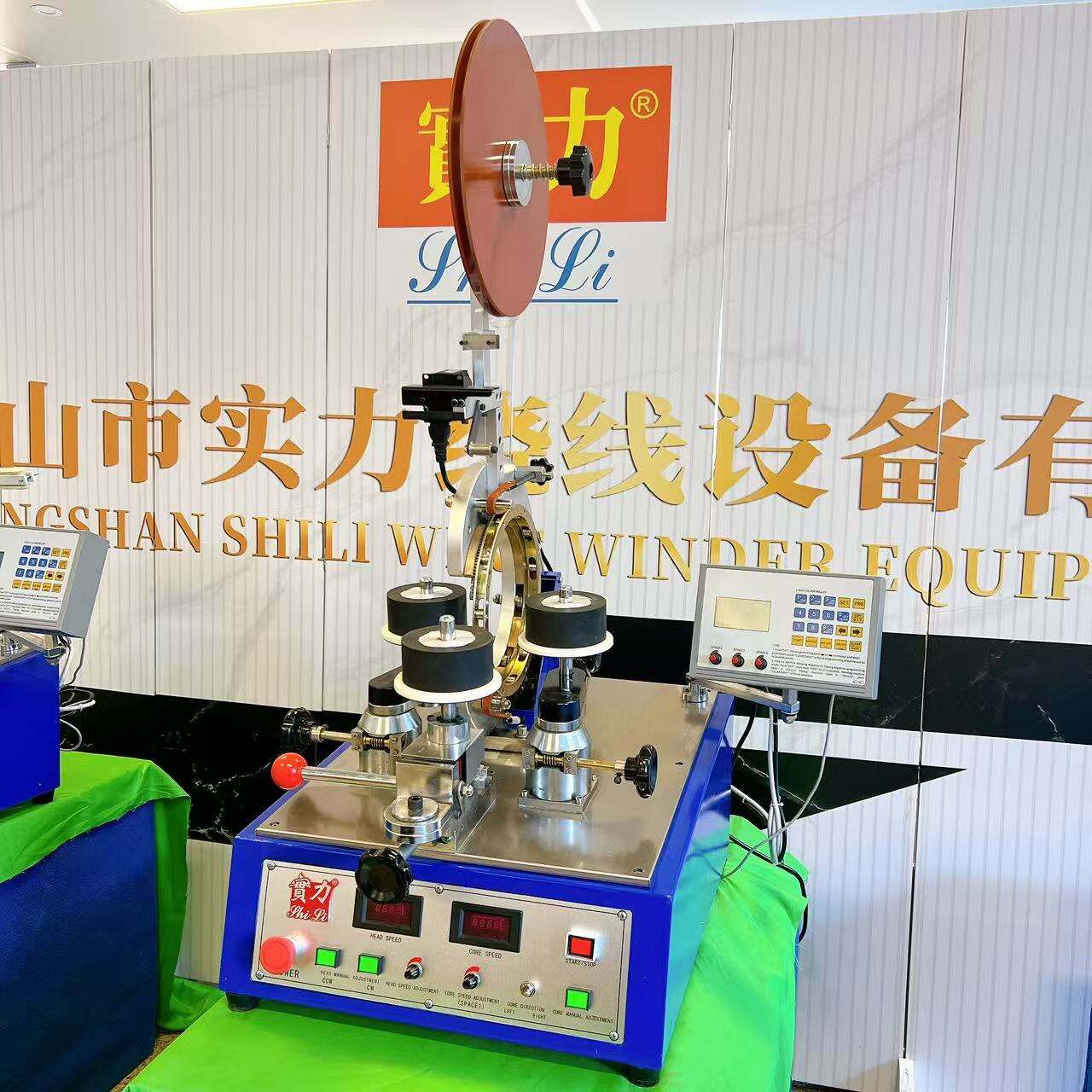

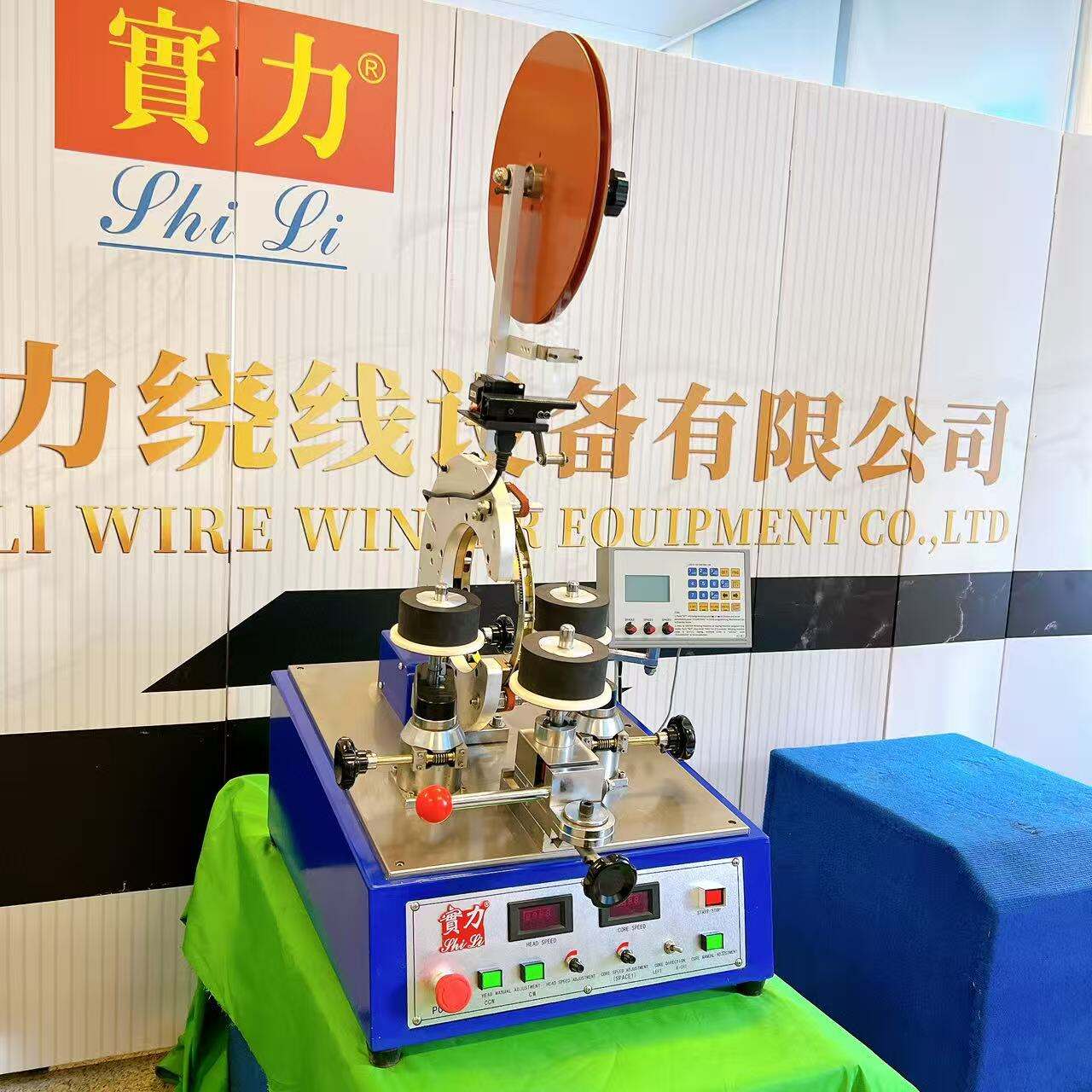

♦ The internal-tooth high-speed taping machine adopts an integrated design of gear and taping ring, featuring high taping speed, large tape storage capacity (in terms of turns), and easy operation.
♦ It also achieves a smaller finished inner diameter. Based on the product’s external dimensions, as well as parameters such as finished inner diameter, finished outer diameter, and number of turns, the required tape storage length can be calculated to select a machine model of appropriate size.
♦ Taping rings of different widths can be replaced on the same machine model to meet the tape storage capacity and finished inner diameter requirements of products of various sizes, resulting in a wider application range.The fixture offers a large adjustable range, enabling simple product clamping. After replacing rubber rollers of different sizes and adjusting the fixture, products of various dimensions can be clamped.
♦ Applicable taping materials include PET, JBT, PVC, and other materials with a thickness of 0.05mm or more; non-adhesive films (both smooth and frosted surfaces); insulating cloth tapes; and paper tapes.
Product specification:
Width of the tape |
10/12/15/choosable |
Speed range |
0-800RPM |
Finally finished OD |
60-180 MM |
Minimum finished ID |
25MM |
Final finished height |
90 MM |
Diameter of winding ring |
260mm |
Tapping ring width |
10-15m（choosable） |
Running method |
Gear type |
Machine power |
220V/50HZ |
Machine size |
500×600×1100mm |
Machine weight |
N.W: 90kg G.W:138kg |
Package size |
650*750*700mm |
After-sales service:
⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.
⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.
FAQ:
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.
2.What is the power supply of the machine?
4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.
5. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
