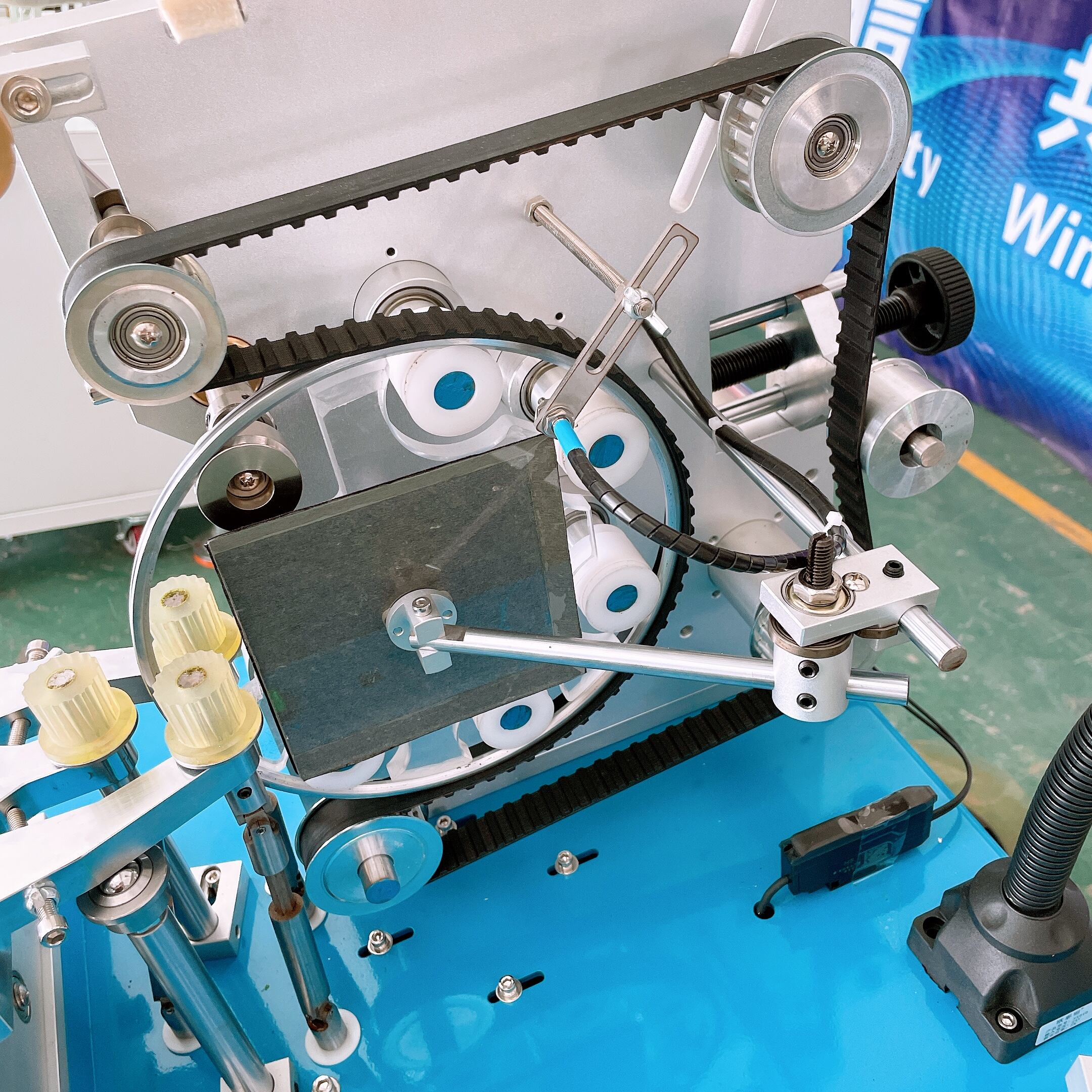

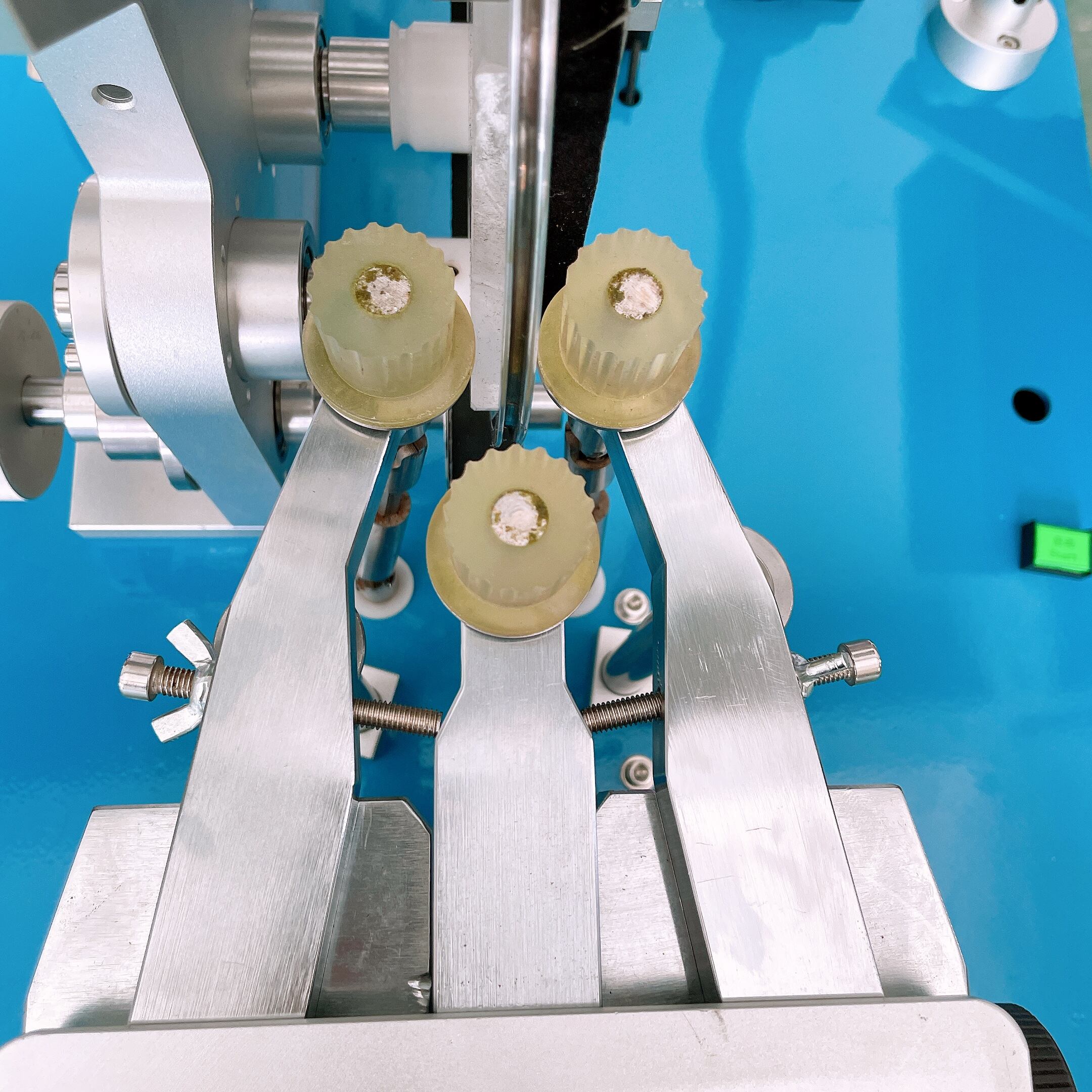

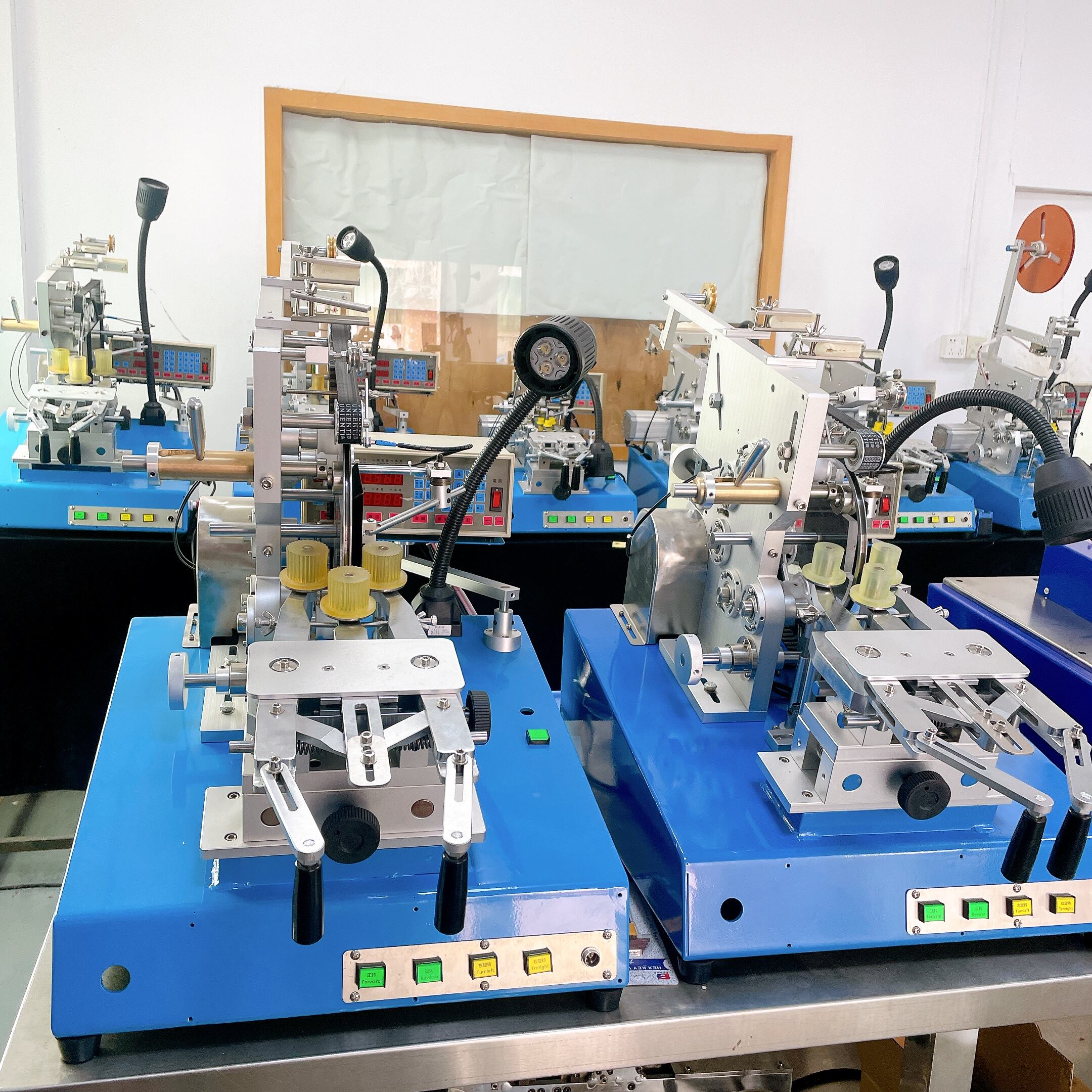

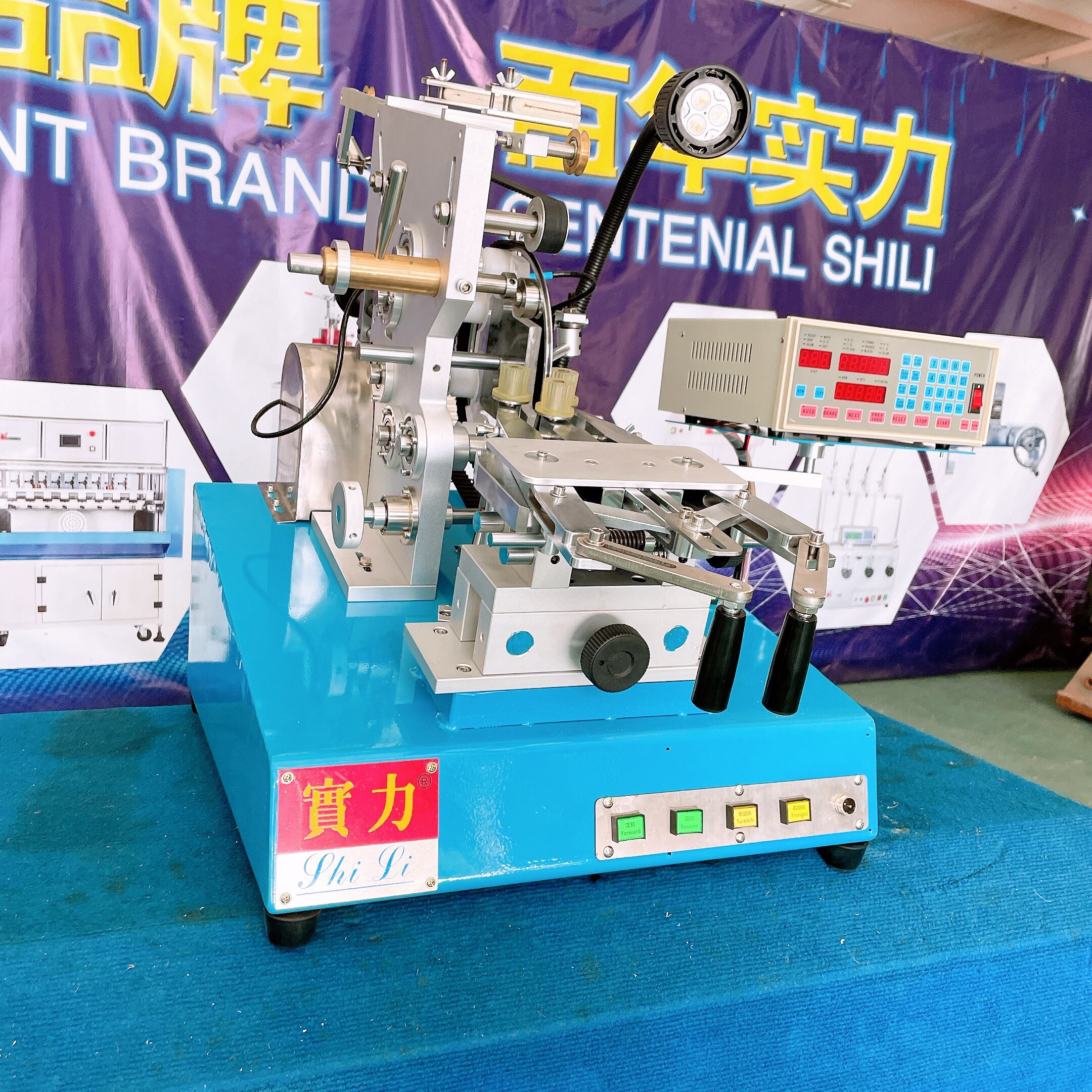

SHL-P8 Belt Type Toroidal Core Winding Machine

Product description:

✦ Using microcomputer controller, easy data setting; Speed easy to control: can set the speed of wire storage and winding respectively.

✦ With foot switch device, fast and convenient production.

✦ Counting method: using optical induction calculation winding number, fast and true.

✦ Winding direction: clockwise and counterclockwise, you can choose to set the Angle to calculate around the digital program.

✦ Can accurately control the line spacing can be set 999 steps.

Product specification:

Core size range	20126—1207520mm	Winding motor	Stepper motor
Wire size range	0.4-1.4mm	Speed range	0-2200
Winding turns	20-1500T	No. of setting	1000（Group）
Ring width	4.5-10mm	Core O.D rage	40-120mm
Max Core height	80mm	Main motor	Brushless DC motor
Machine power	220V/50HZ	Machine size	900700600mm
Machine weight	N.W: 40kg G.W:66kg	Package size	1000550600mm


After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team

package 2.jpg 售后.jpg

FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
