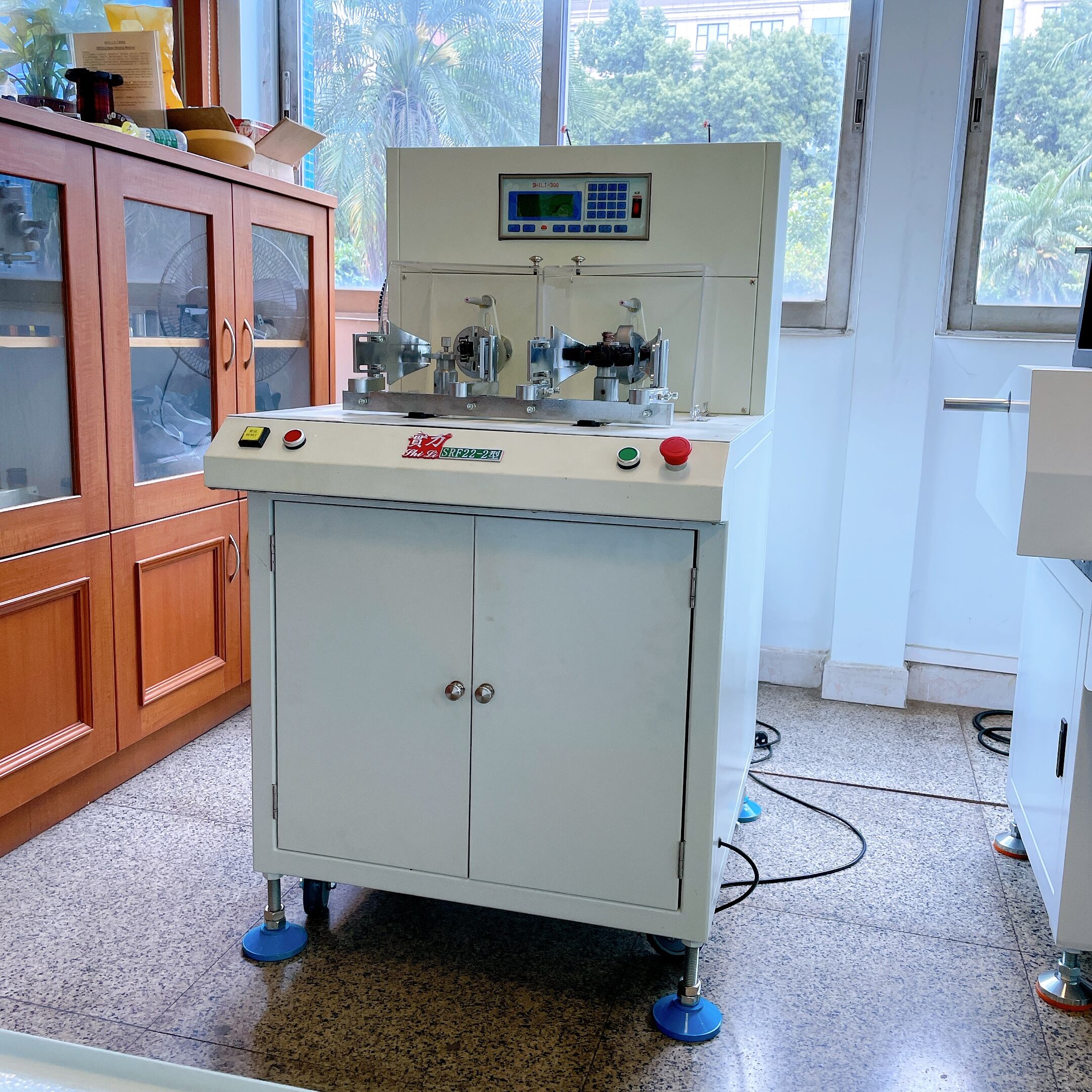

SRF22-2 Two Spindle Ceiling Fan Motor Winding Machine

Product description:

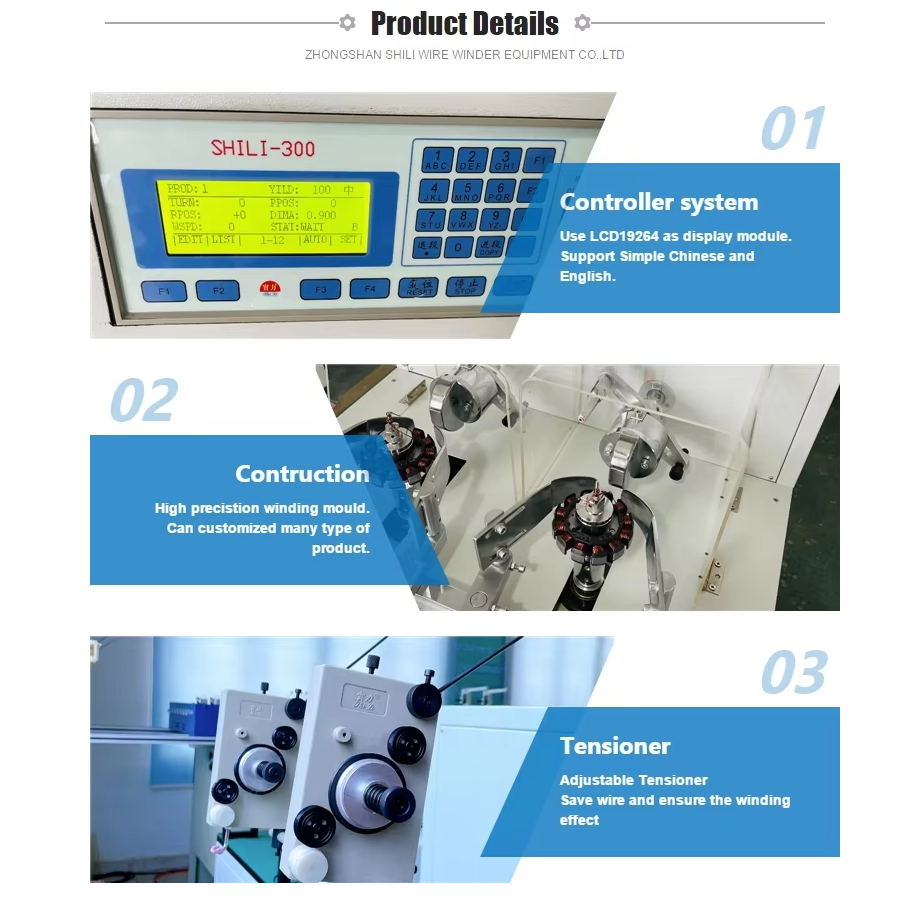

✅ Dot matrix LCD with big screen of 192 x 64, Chinese characters, contrast ratio can be set through a potentiometer.

✅ Adopt FLASH ROM for storing 10 sections of winding information, each winding data can be named respectively, any kind of winding can be called at any time, and the data will not be lost when power-down.

✅ Turning angle / indexing, transmission ratio of winding arrangement shaft can be selected along with the mechanism design and moving speed can be adjusted within the range of 0 ~ 99%.

✅ Winding speed can be set within the range of 0 ~ 99% and the actual speed depends on the transmission ratio.

Application range:

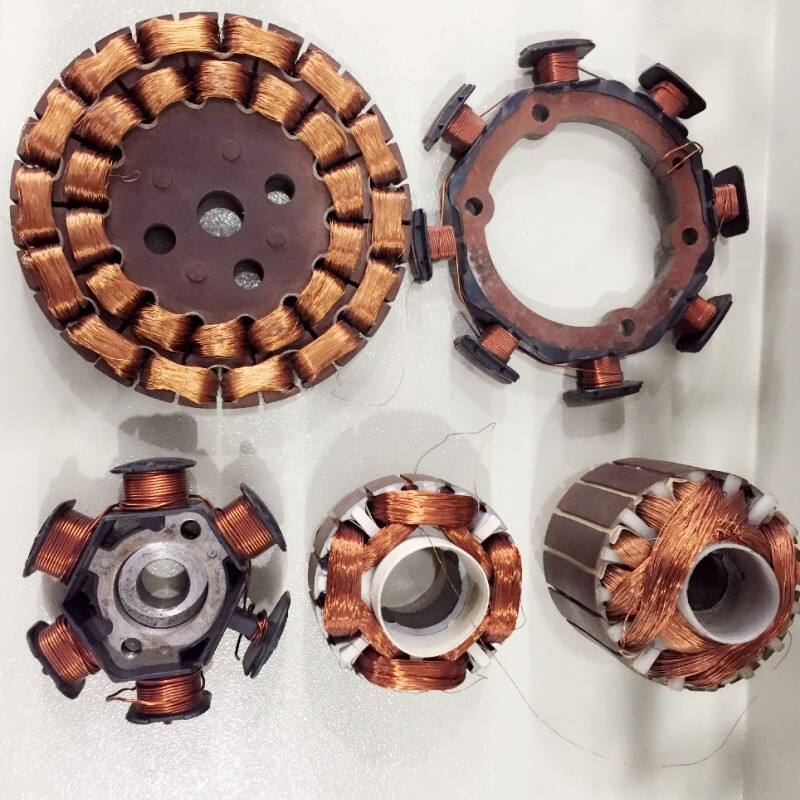

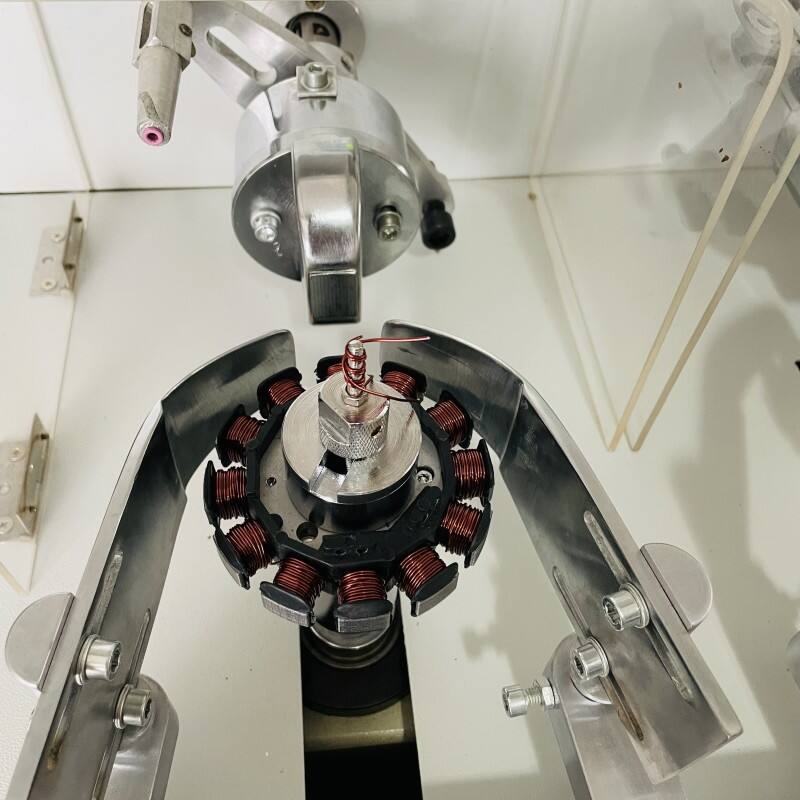

Machine suitable for all kinds of motor stator winding，ceiling fan stator, pole number stator, locomotives generators and motorcycle motor etc.

Product specification:

Spindle number	2	Wire size range	0.1-1.2mm
Max loop diameter	200mm	Winding width	0-100mm
Speed range	0-2200RPM	Spindle motor	Three phase motor+ AC dirve
Winding motor	Stepping motor	Input power	220V 50/60HZ
Package size	10007901300mm	Gross weight	270KG

jjj

jjjj

After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team

package 2.jpg 售后.jpg


FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment..

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
