Product description:

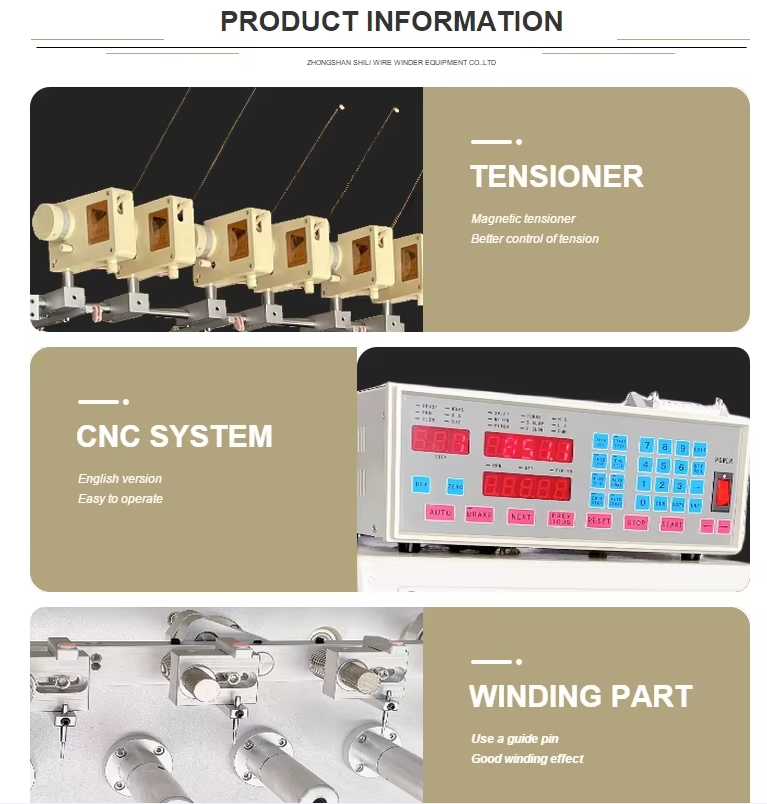

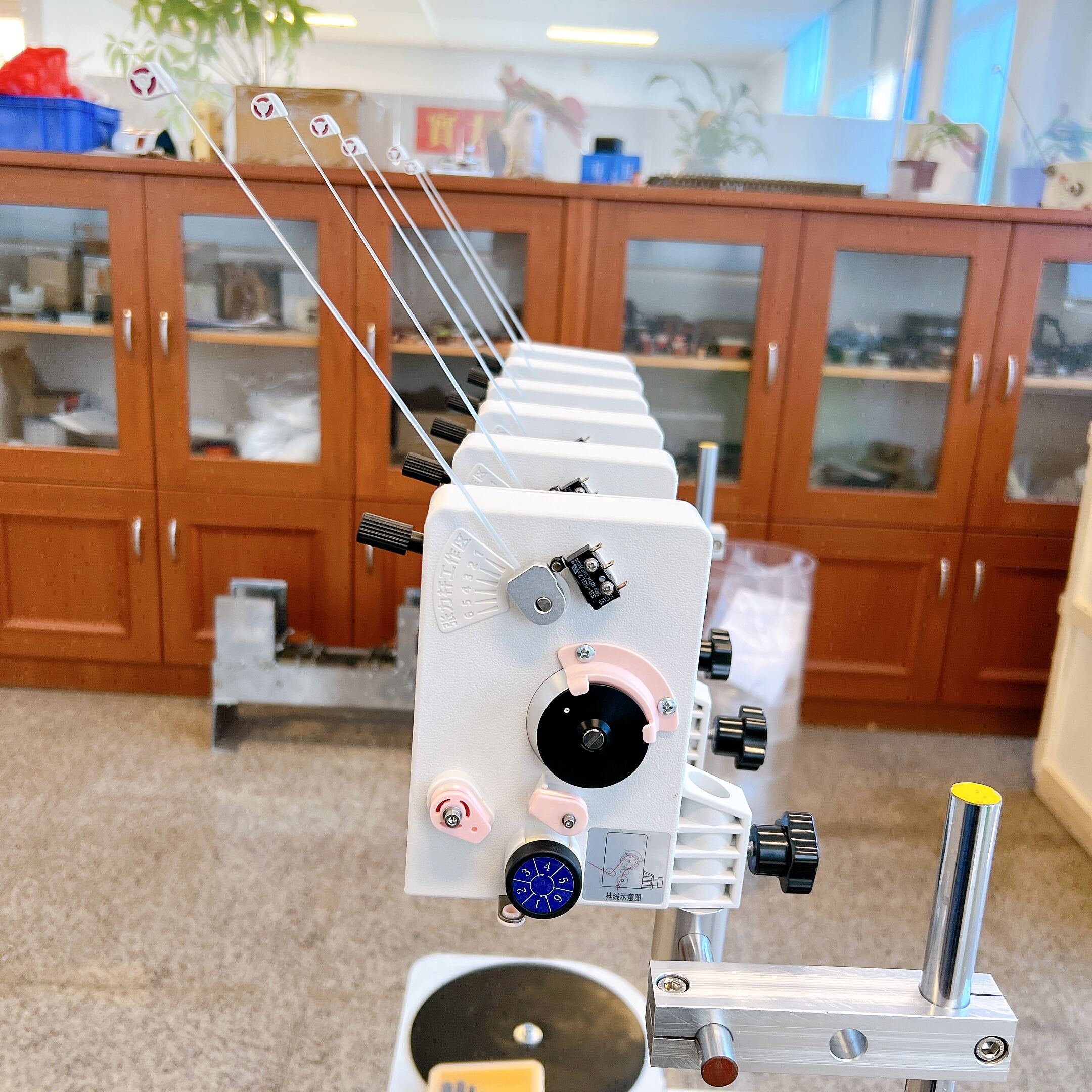

✅ The mechanical part has a really simple structure. The high-precision tensioner is super easy to use and gives you great accuracy.
✅ We use a data teaching input method for entering info, which makes it simple and quick to learn. Plus, maintaining the equipment is a breeze.
✅ Change the program as needed to make it do more things. You can even pause while editing if you want. It also has features like slowing down at both ends, different counting modes, start options, high speed ,running quietly and keeping the wiring stable.
✅ You can set up to 999 groups of step sequences, so there’s plenty of room to store your data, making everything way more convenient.
Application range:
Shade-pole motor, pump coil, high voltage coil, solenoid valve coil, guitar pickiup coil, switching power transformer and other thin wire products.
Product specification :
Spindle number |
6 |
Wire size range |
0.03-0.8mm. |
Max loop diameter |
100mm |
Winding width |
0-90mm |
Speed range |
0-9000RPM |
Spindle motor |
Servo motor |
Winding motor |
Stepping motor |
Input power |
220V 50/60HZ |
Machine size |
600*500*700mm |
Net weight |
90KG |
After-sales service:
⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.
⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.
FAQ:
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.
2.What is the power supply of the machine?
4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.
5. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
