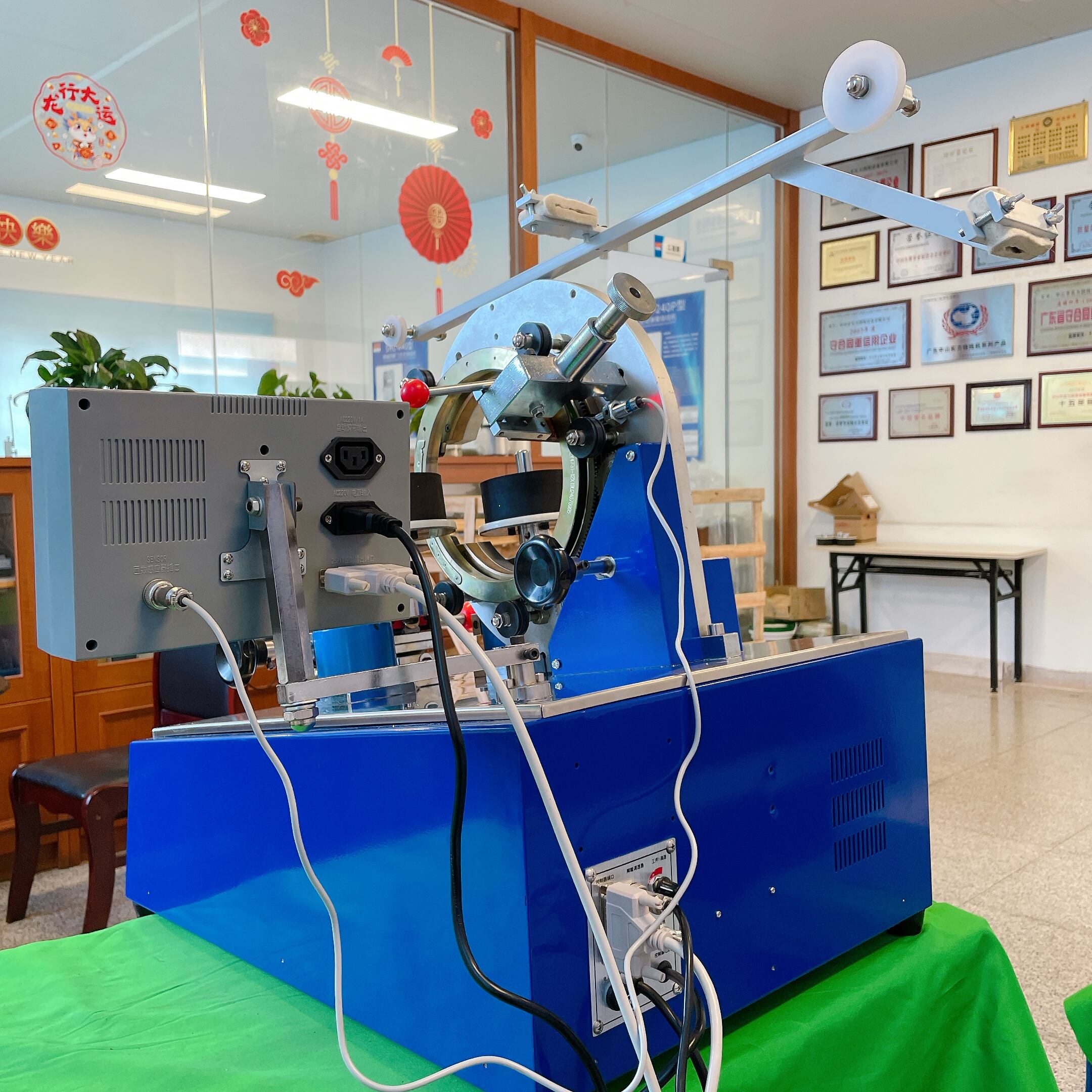

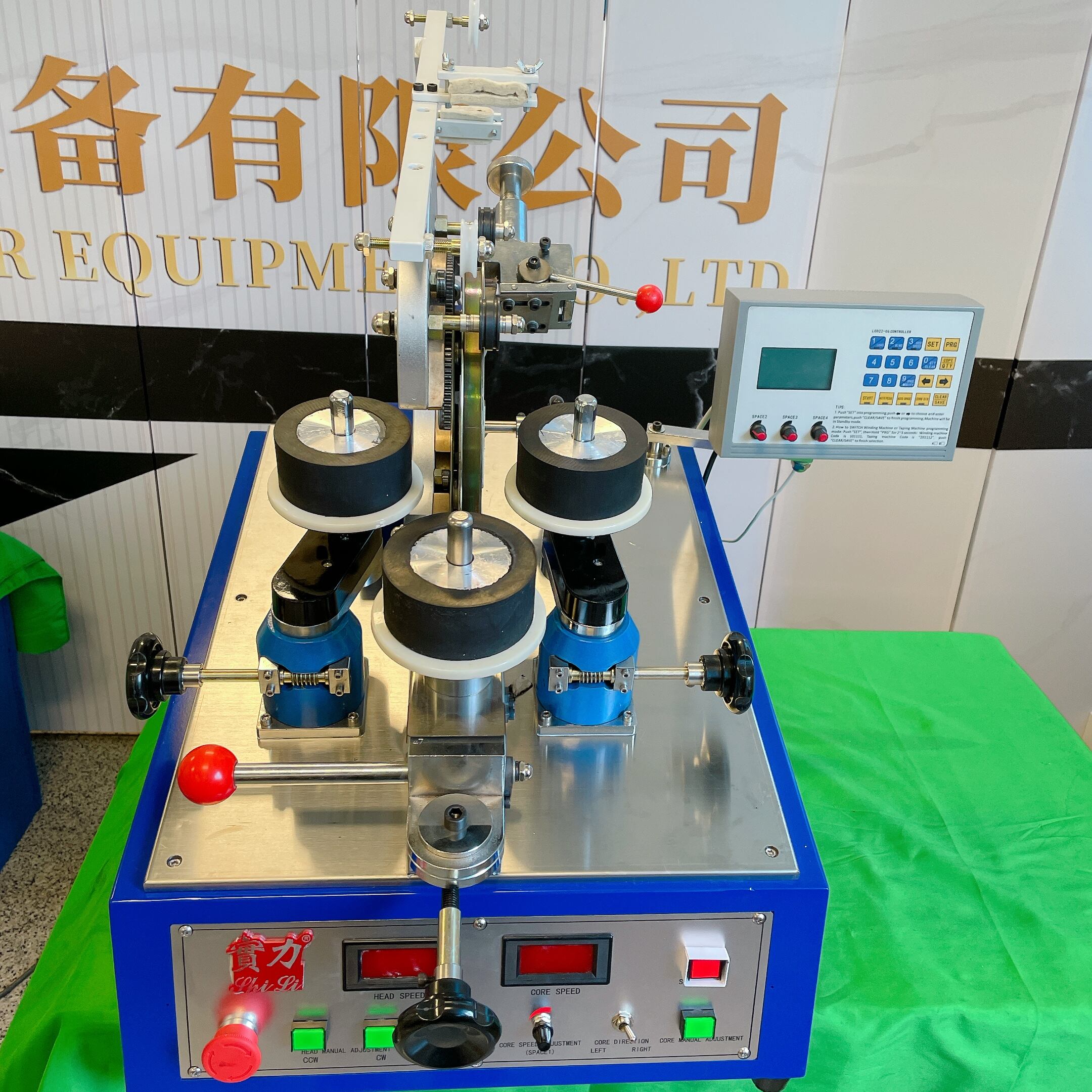

SHL-DL Gear Type Toroidal Core Winding Machine

Product description:

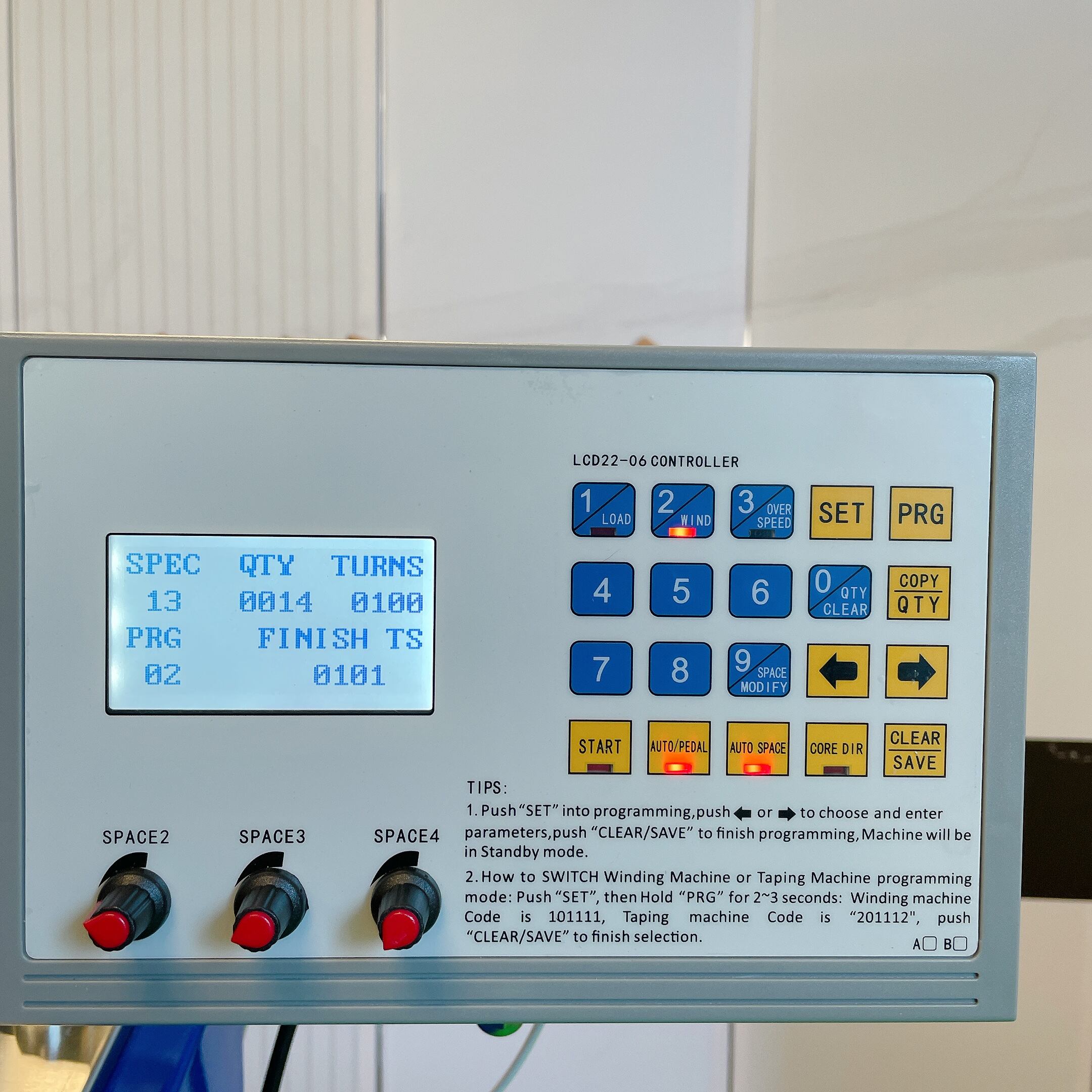

✦ Using microcomputer controller, easy data setting; Speed easy to control: can set the speed of wire storage and winding respectively.

✦ With foot switch device, fast and convenient production.

✦ Counting method: using optical induction calculation winding number, fast and true.

✦ Winding direction: clockwise and counterclockwise, you can choose to set the Angle to calculate around the digital program.

✦ Can accurately control the line spacing can be set 999 steps.

Product specification:

Wire size range	0.7-2.5 MM	Speed range	0-230RPM
Finally finished OD	60-200 MM	Minimum finished ID	30MM
Final finished height	80 MM	Diameter of winding ring	250mm

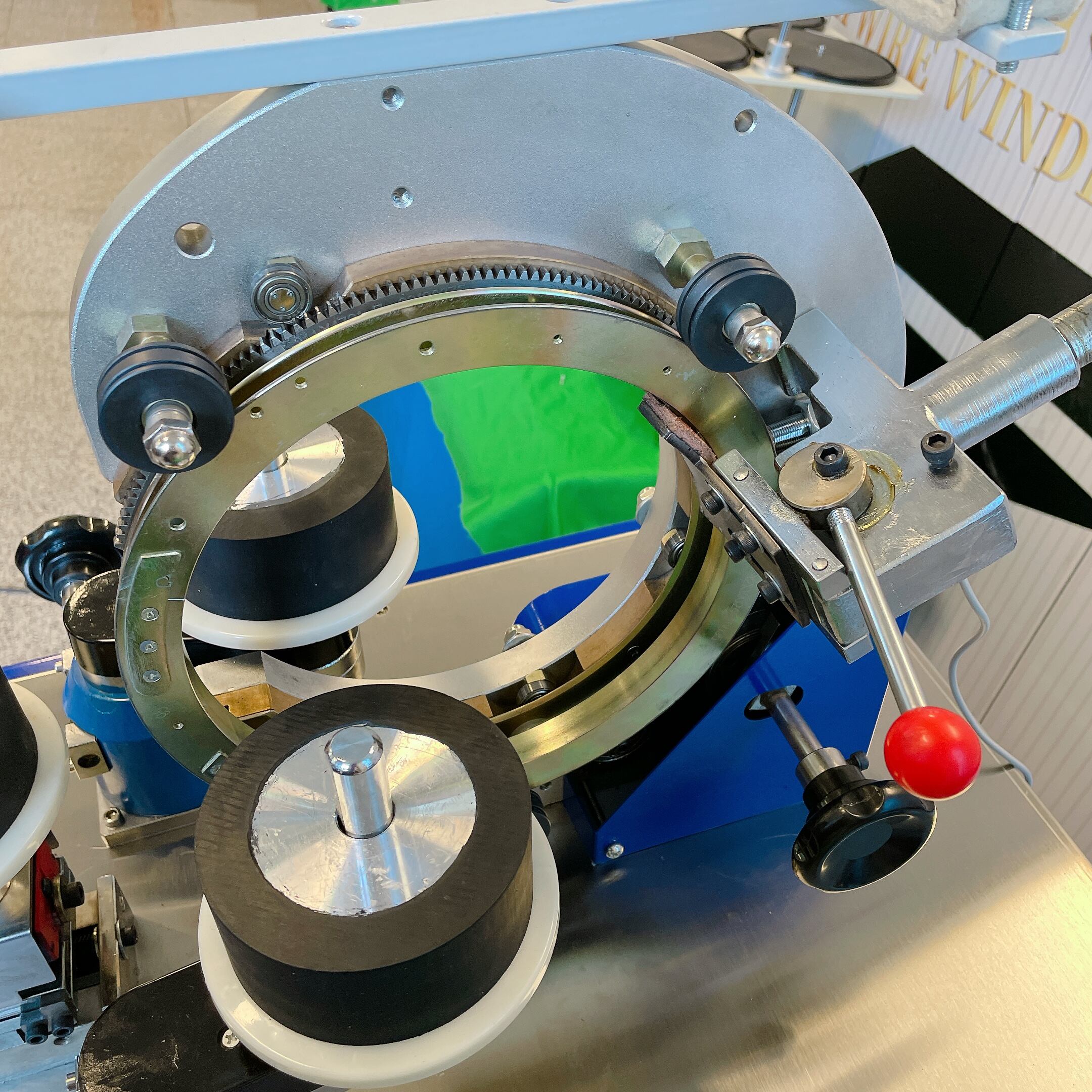

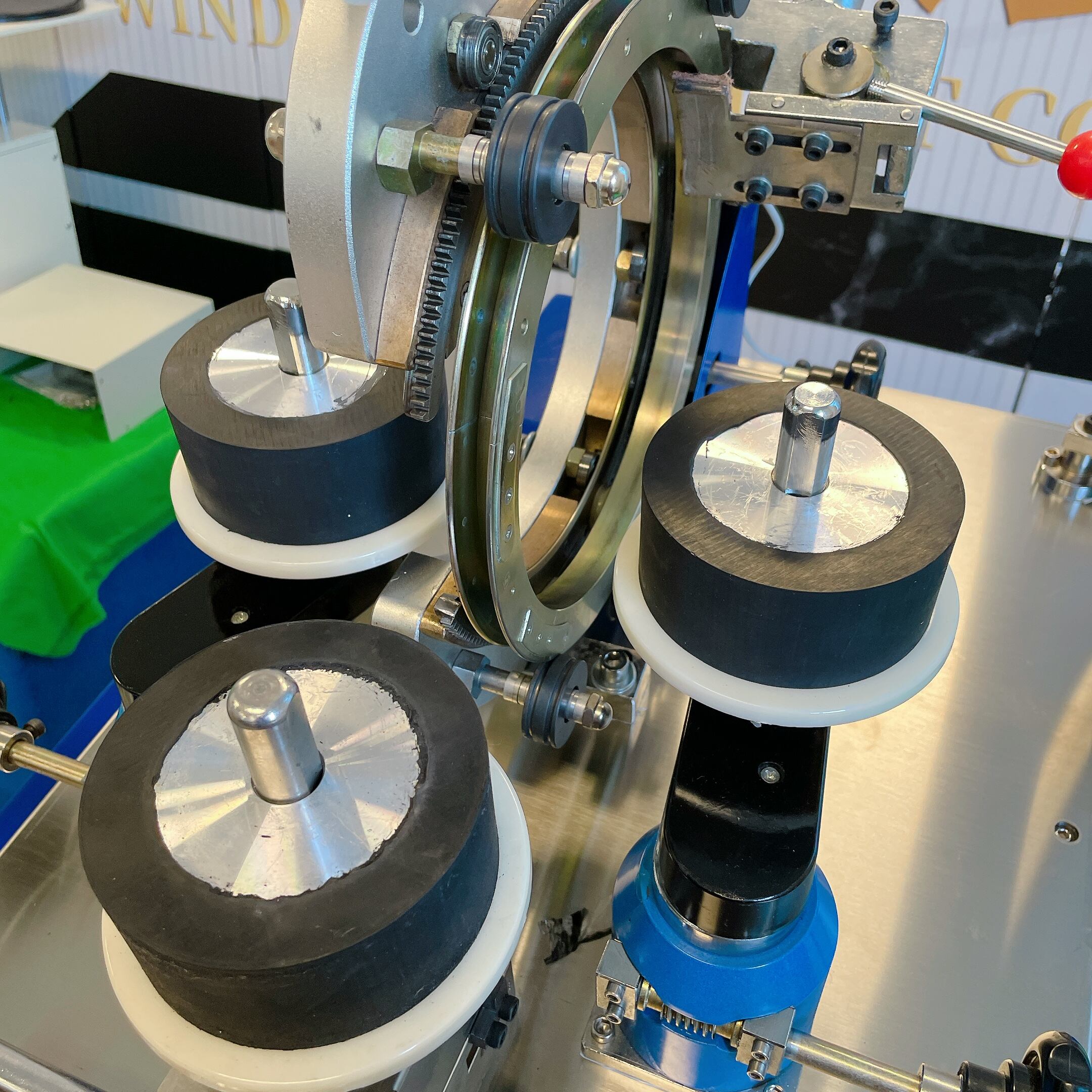

Max Core height	80mm	Winding method	Gear type
Machine power	220V/50HZ	Machine size	500×600×750mm
Machine weight	N.W: 120kg G.W:168kg	Package size	1000550600mm


After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.

package 2.jpg 售后.jpg

FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
