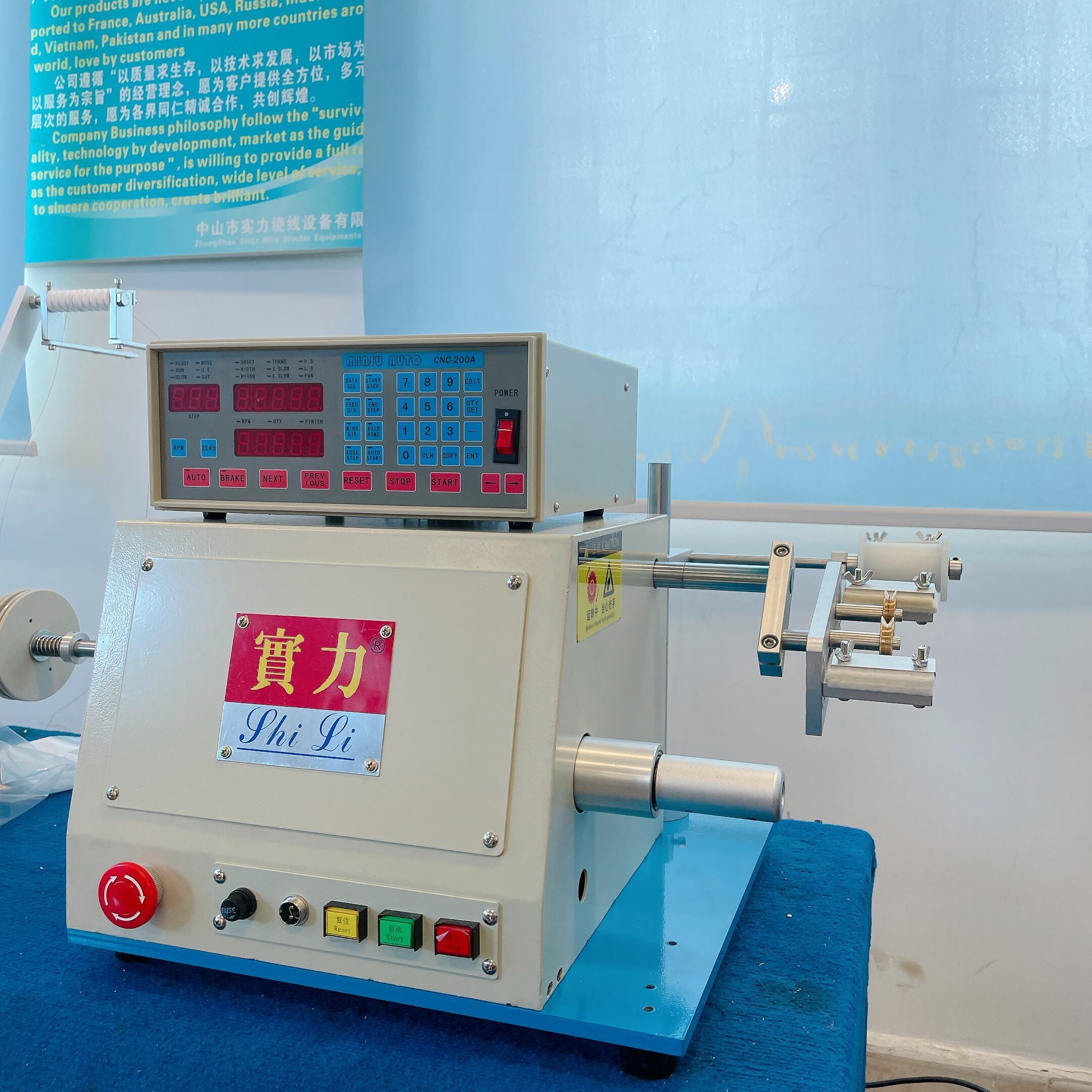

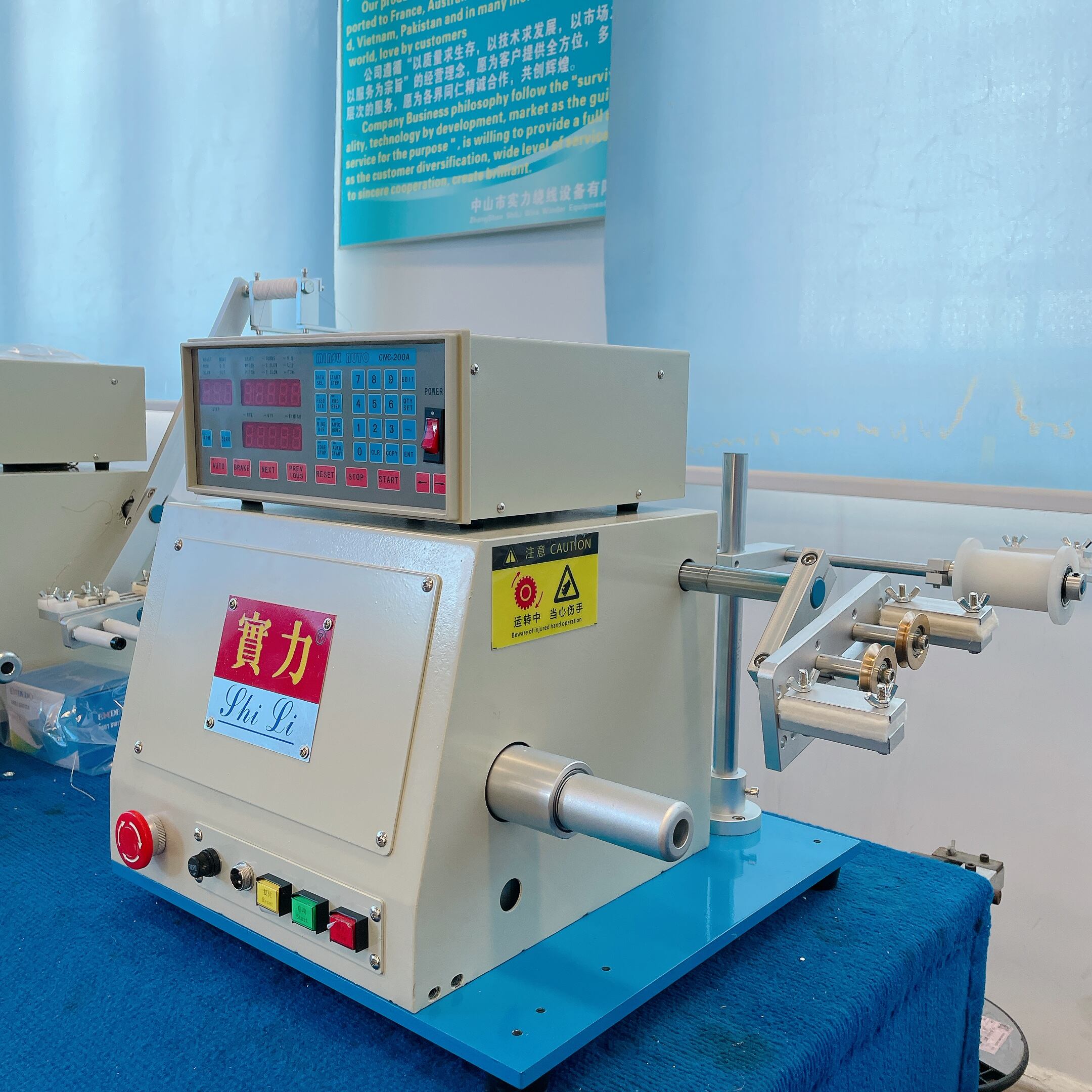

SHL22-1A Single Spindle Thick Wire Winding Machine

Product description:

✅ Convenient assembly and disassembly, realize trouble saving, labor saving.

✅ Support Simple Chinese and English.

✅ The error diagnosis system can help user debug the machine.

✅ 30 programs, and 30 steps per grogram.

Application range:

Rectifier, frequency divider and other medium-sized coil, solenoid valve, high power transformer coil, low frequency transformer.

Product specification:

Spindle number	1	Wire size range	0.5-1.5mm.
Winding width	0-110mm	Max winding diameter	240mm
Speed range	0-2300RPM	Spindle motor	600W Brushless DC motor
Winding motor	Stepping motor	Input power	220V 50/60HZ
Machine size	540440410mm	Net weight	42KG


After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.

package 2.jpg 售后.jpg

FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
