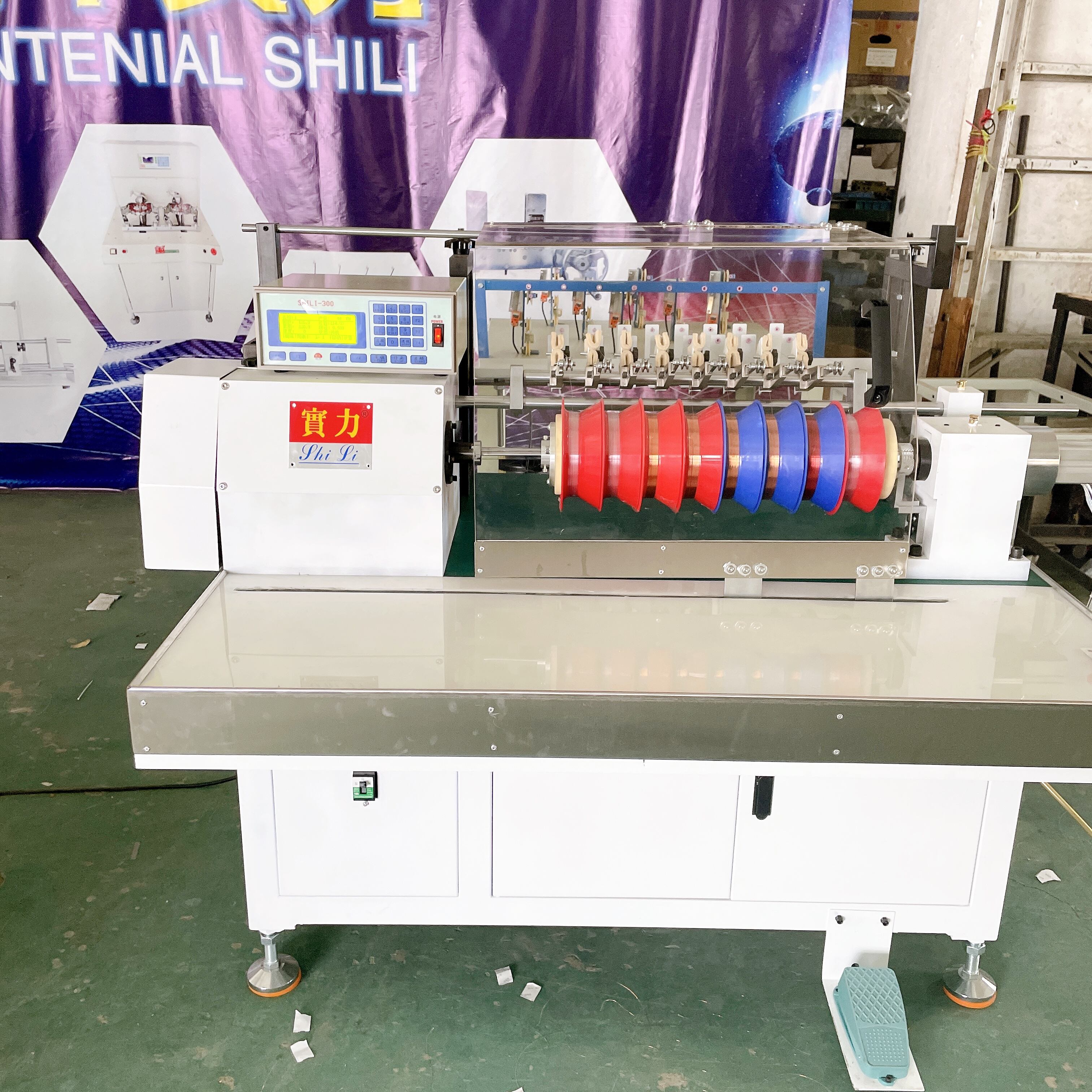

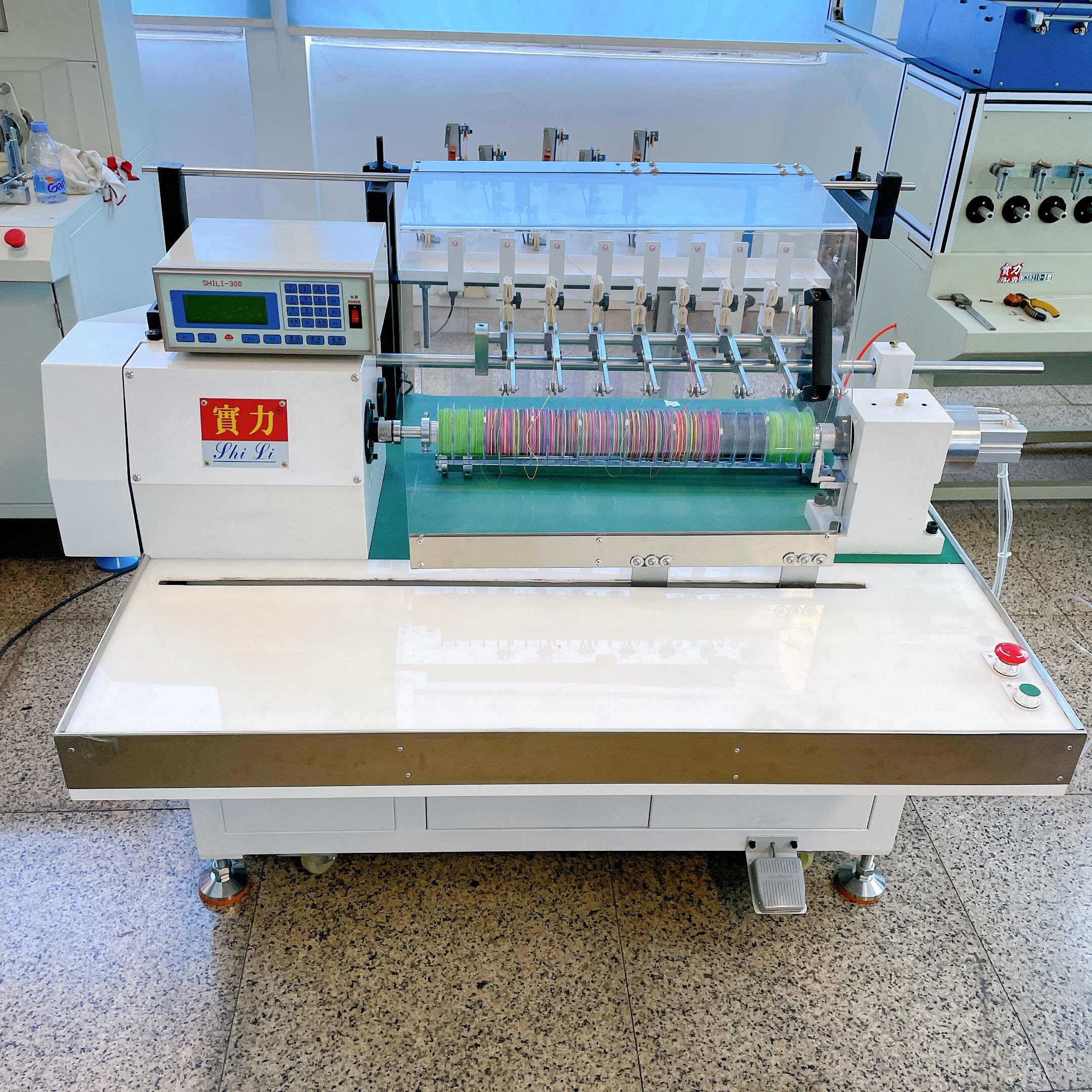

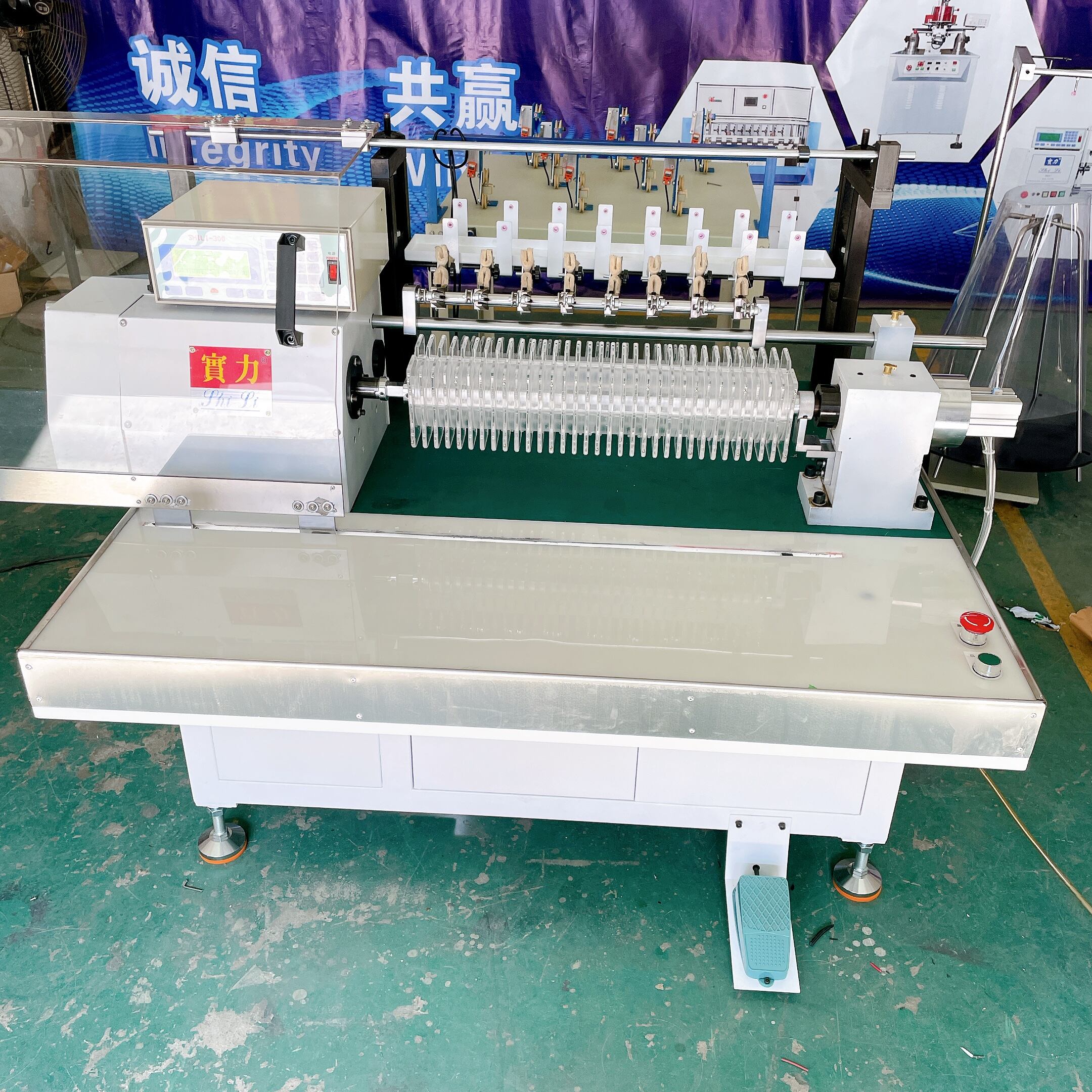

SRA22-8 Eight Spindle Fishing Line Winding Machine

Product description:

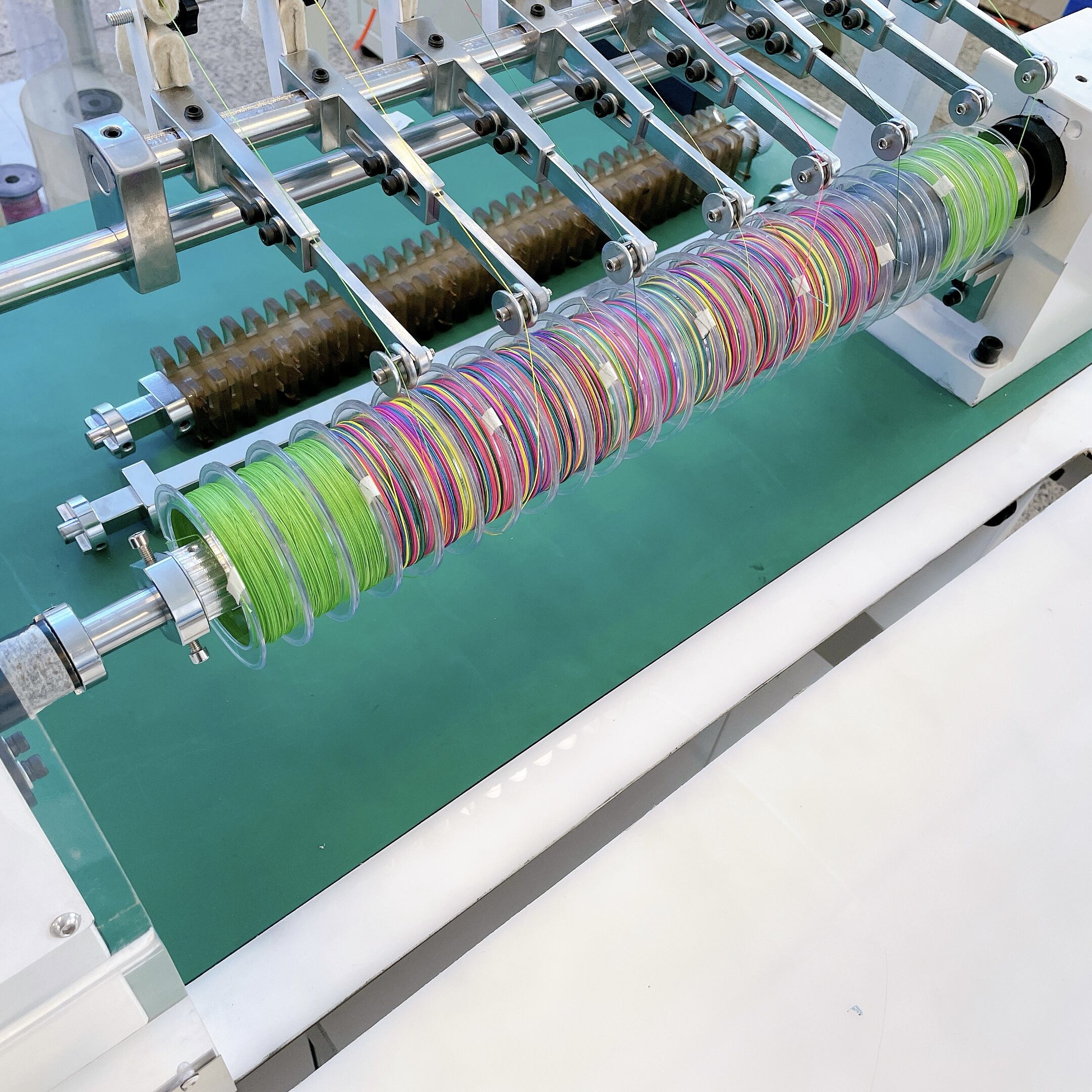

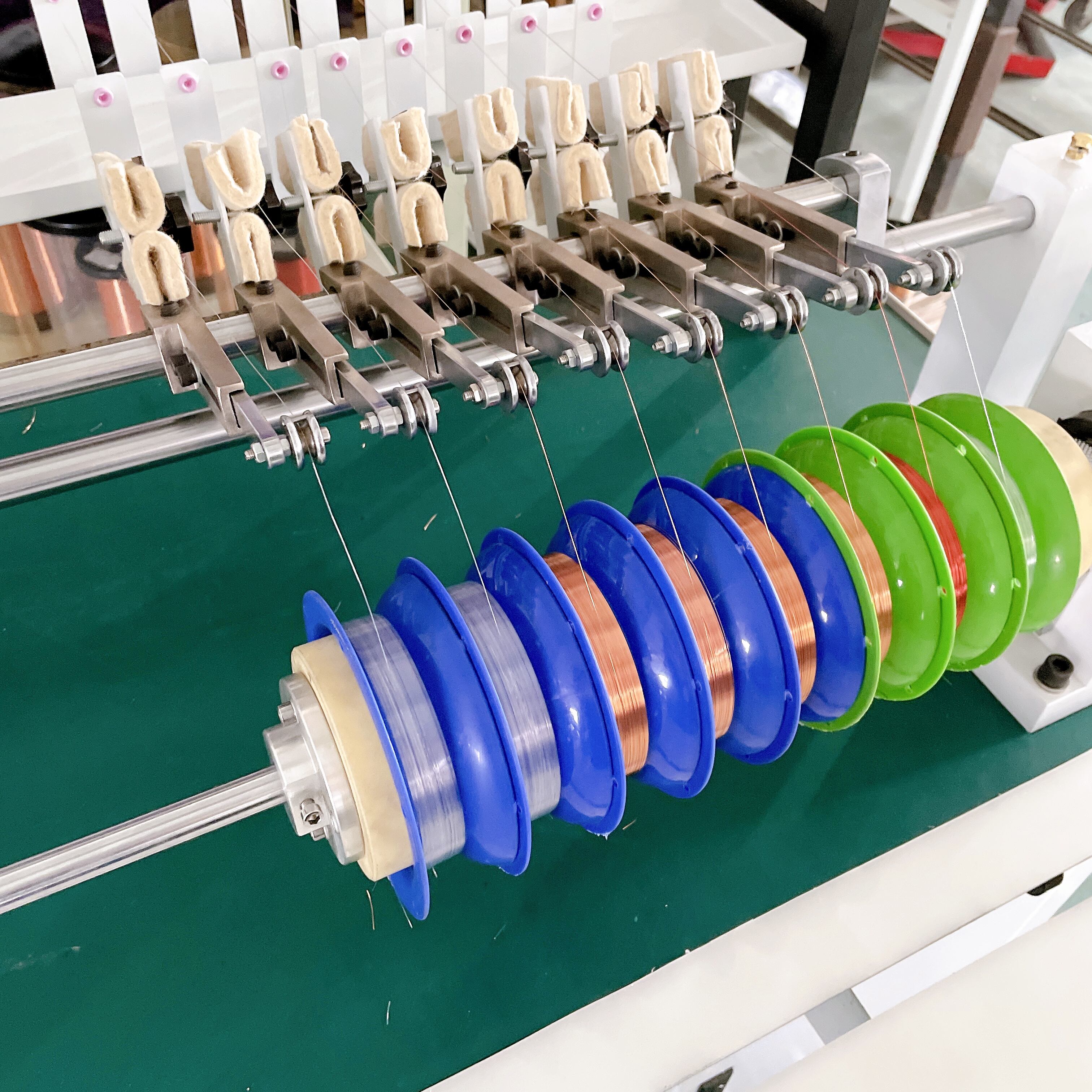

✅ Eight spindle synchronous operation, eight wire can be winding at the same time, also can auto pass spool slots, in the effective length around the winding bar each action can complete 8-24 pcs spool.

✅ There are two winding bar used alternately, the diameter of the spools can be 25mm-180mm, high production efficiency.

✅ Use LCD19264 as display module.

✅ Support Simple Chinese and English. The error diagnosis system can help user debug the machine.

✅ 30 programs, and 30 steps per grogram.

Application range:

All kinds of fishing line spool winding, hank fishing ine winding , special specifications can be customized.

Product specification:

Spindle number	8	Wire size range	0.1-0.6mm
Loop diameter	260mm	Max wire space	9.99mm
Winding width	0-180mm	Max winding diameter	80mm
Speed range	0-3500RPM	Spindle motor	Three phase motor + AC dirve
Winding motor	Stepping motor	Input power	220V 50/60HZ
Package size	168010301480mm	Gross weight	400KG



After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.

package 2.jpg 售后.jpg

FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
