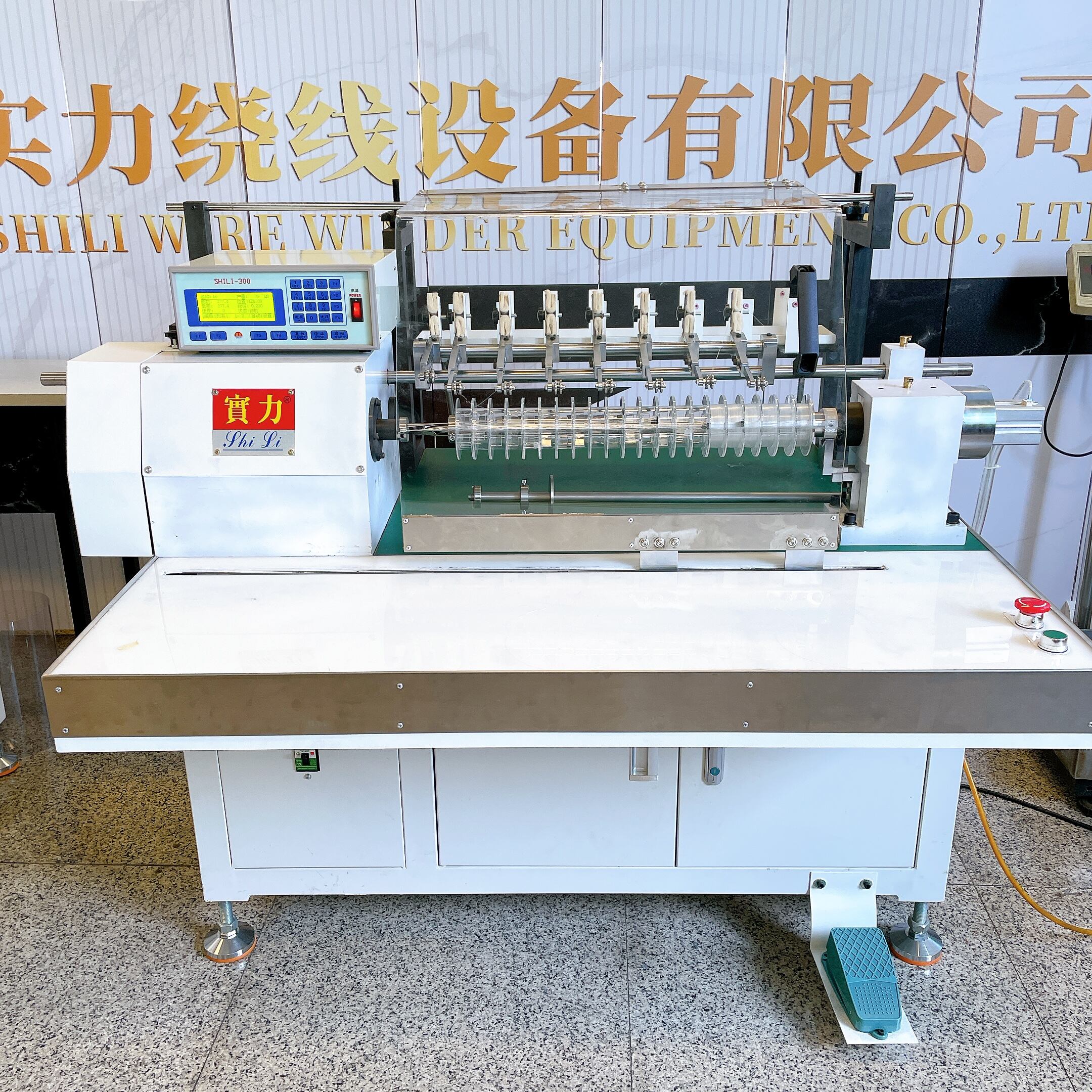

SRA22-8 Motor Coil Winding Machine For Industrial Motor

Product description:

✅ Pneumatic die frame assembly and disassembly.

✅ There are two winding square shafts (size 16×16×630MM) used alternately, the diameter of coil can be 25mm-180mm, high production efficiency.

✅ The whole machine adopts thickened cast iron machine, so that the vibration and noise of the machine is less, at the same time, equipped with wire break protection switch, no scrap products.

✅ Equipped with mobile wire racks (including 8 sets of wire racks +8 wire cylinders with diameters of 120MM×300MM).

Application range:

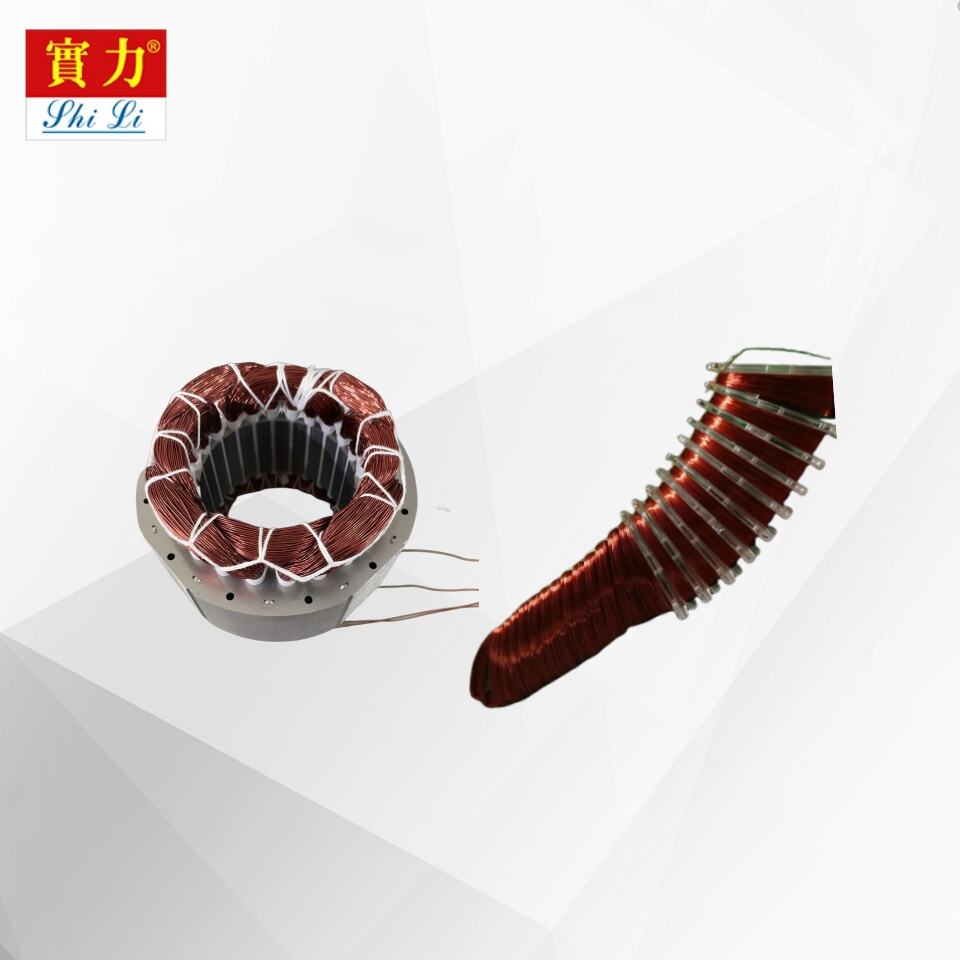

Can winding a variety of motor coil groups, including industrial motors, air conditioner motors, washing machine motors, fan motors.

Product specification:

Spindle number	8	Wire size range	0.1 - 0.8mm
Loop diameter	240mm	Max wire space	9.99mm
Winding width	0-170mm	Max winding diameter	80mm
Speed range	0-3200RPM	Spindle motor	Three phase motor + AC dirve
Winding motor	Stepping motor	Input power	220V 50/60HZ
Package size	168010301480mm	Gross weight	400KG



After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.

package 2.jpg 售后.jpg

FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
