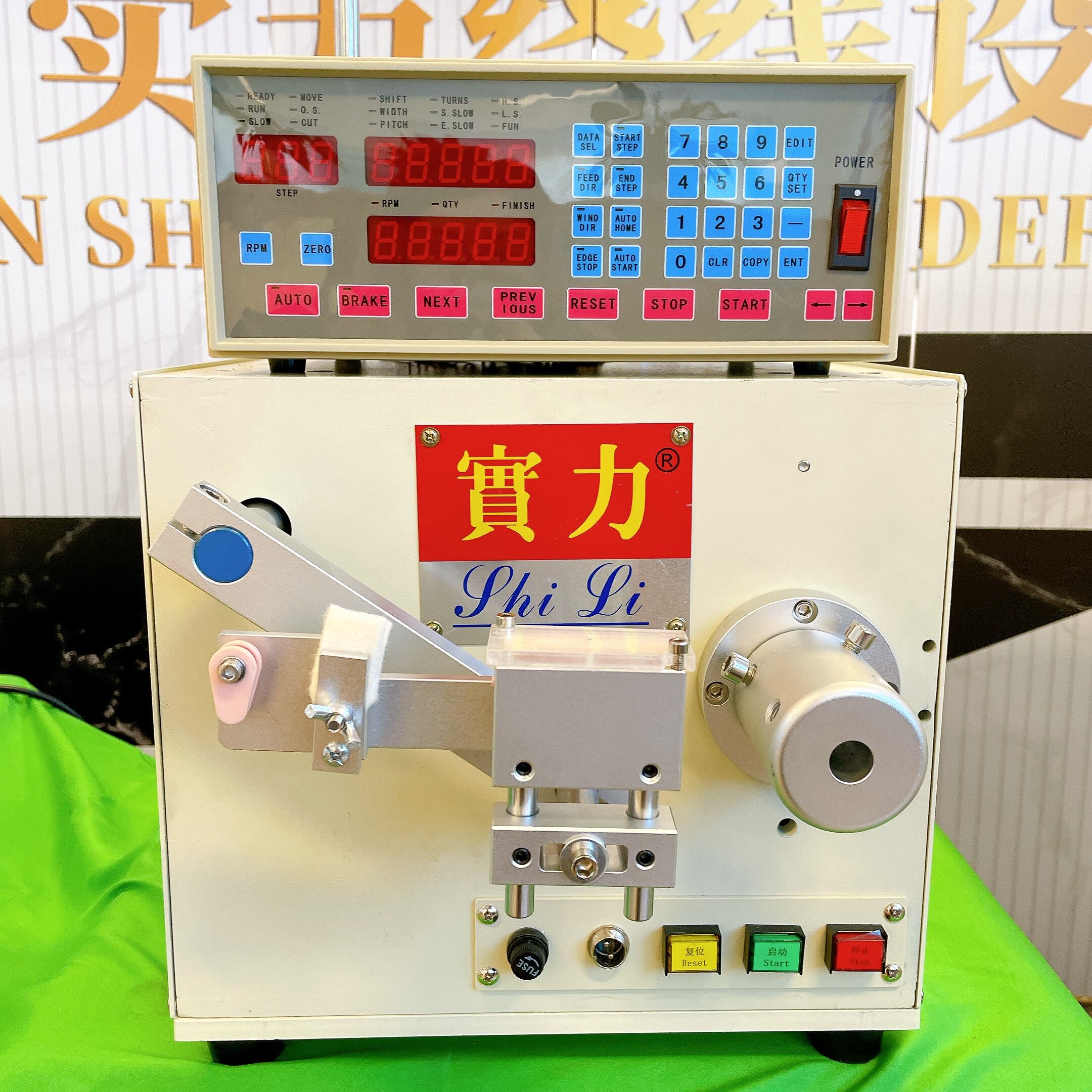

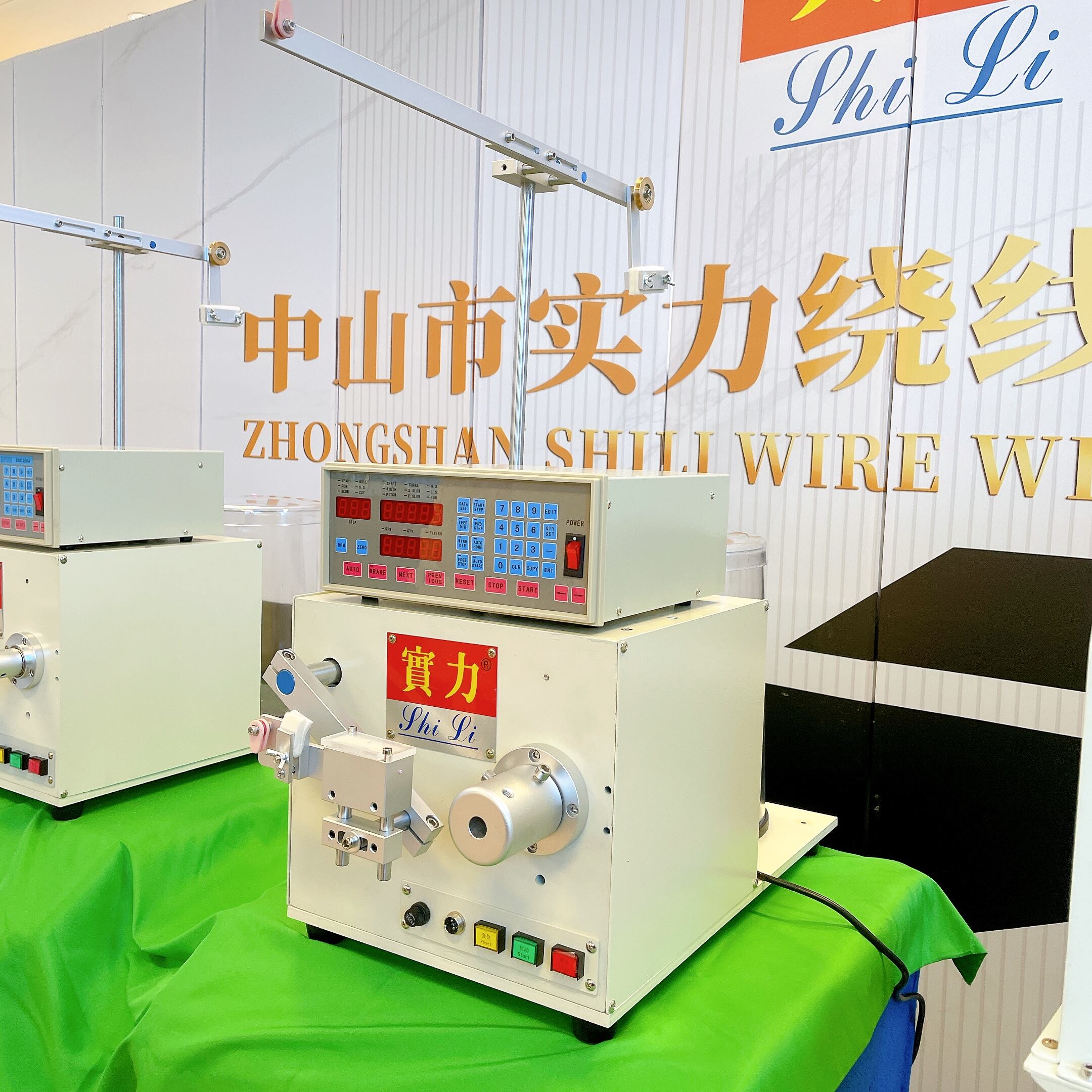

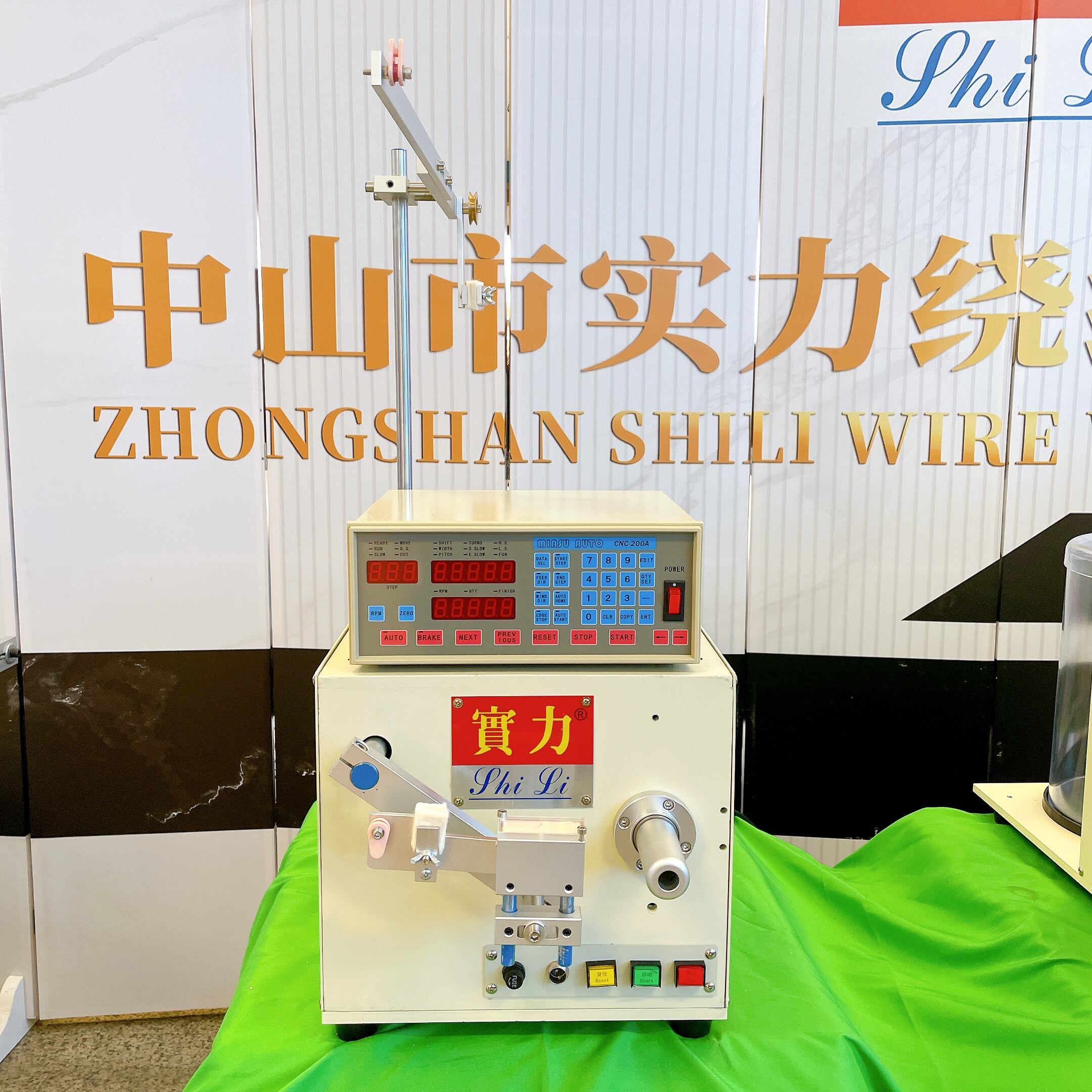

Product description:
✅ The controller is controlled by microcomputer, and the data setting is easy.
✅ 0-999 group step setting capacity, can set forward, reverse, cross groove and dense winding operation.
✅ The winding point position can be taught to input and can display the current wire axis position.
✅ Winding points can be set in sections. width. wire distance speed, etc., in order to achieve multi - section multi - speed purpose.
✅ Winding fixture replacement is simple and convenient.
✅ With foot switch device for efficiency.
Application range:

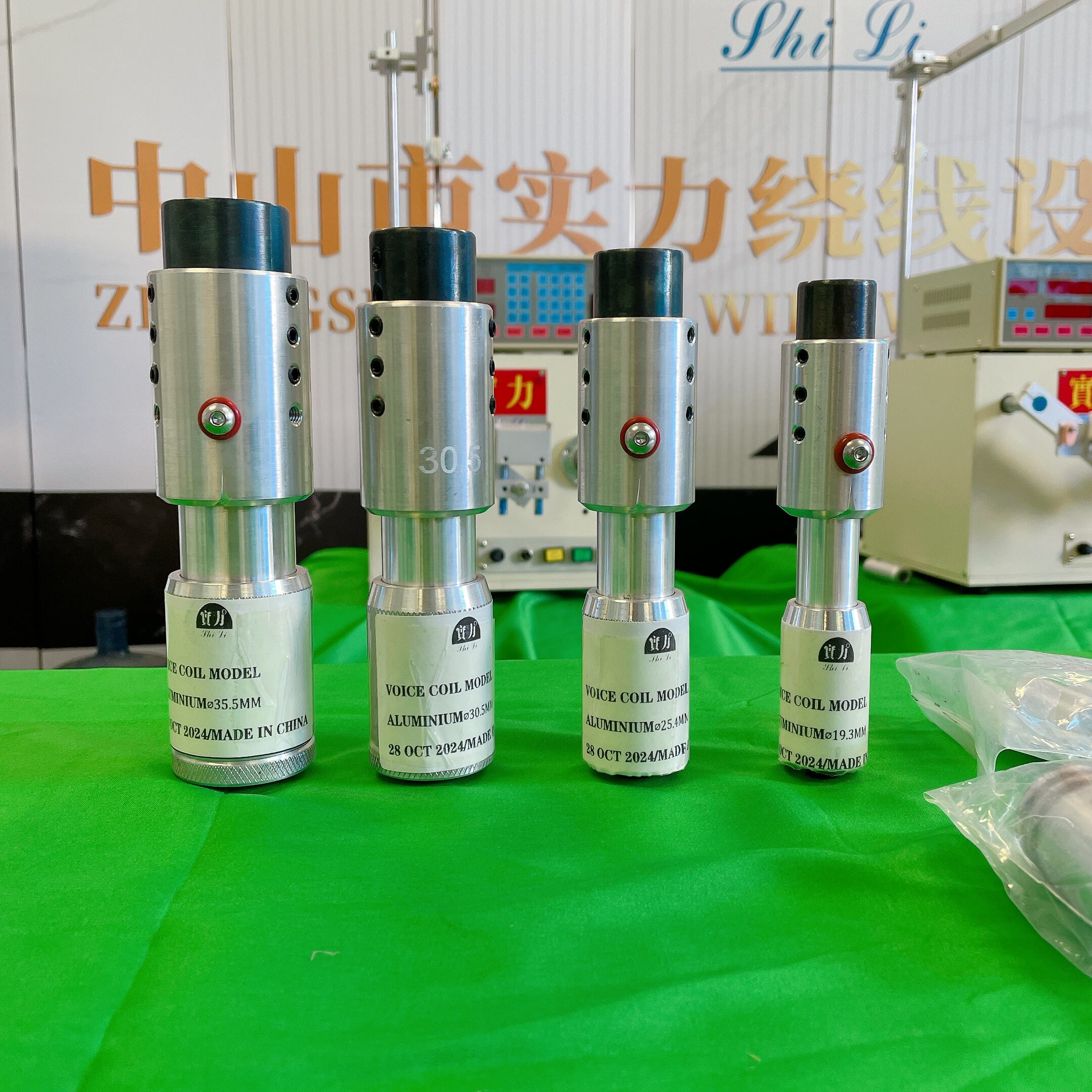

Voice coil, alcohol self - adhesive wire, hollow coil, heat - coax coil, etc
Product specification:
Spindle number |
1 |
Wire size range |
0.02-1.2mm |
Max coil diameter |
76.2mm (standard size， can customized) |
Winding width |
0-110mm |
Speed range |
0-6000RPM |
Spindle motor |
Brushless DC motor |
Winding motor |
Stepping motor |
Input power |
220V 50/60HZ |
Package size |
770*410*570mm |
Gross weight |
80KG |
After-sales service:
⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.
⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team
FAQ:
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.
2.What is the power supply of the machine?
4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.
5. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
