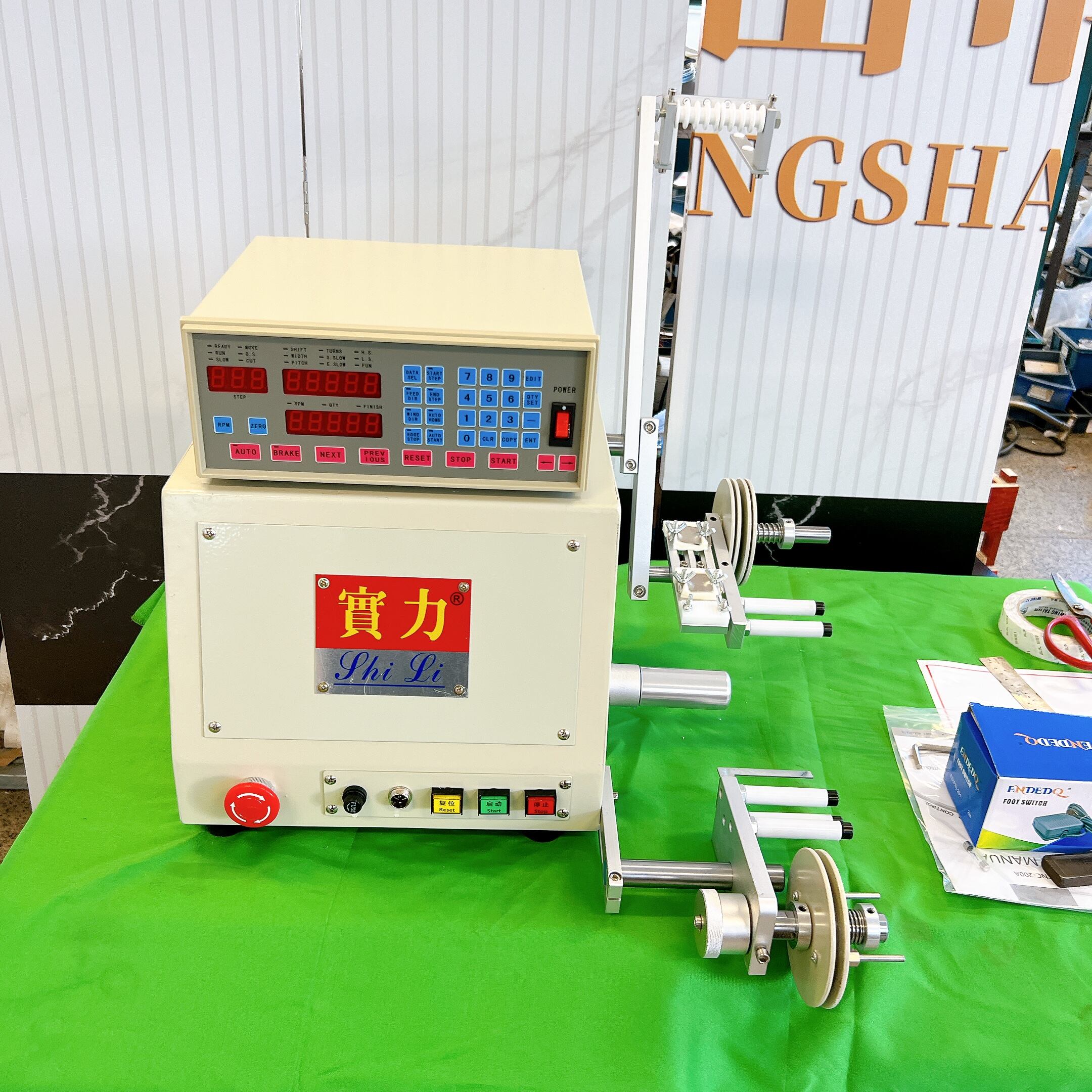

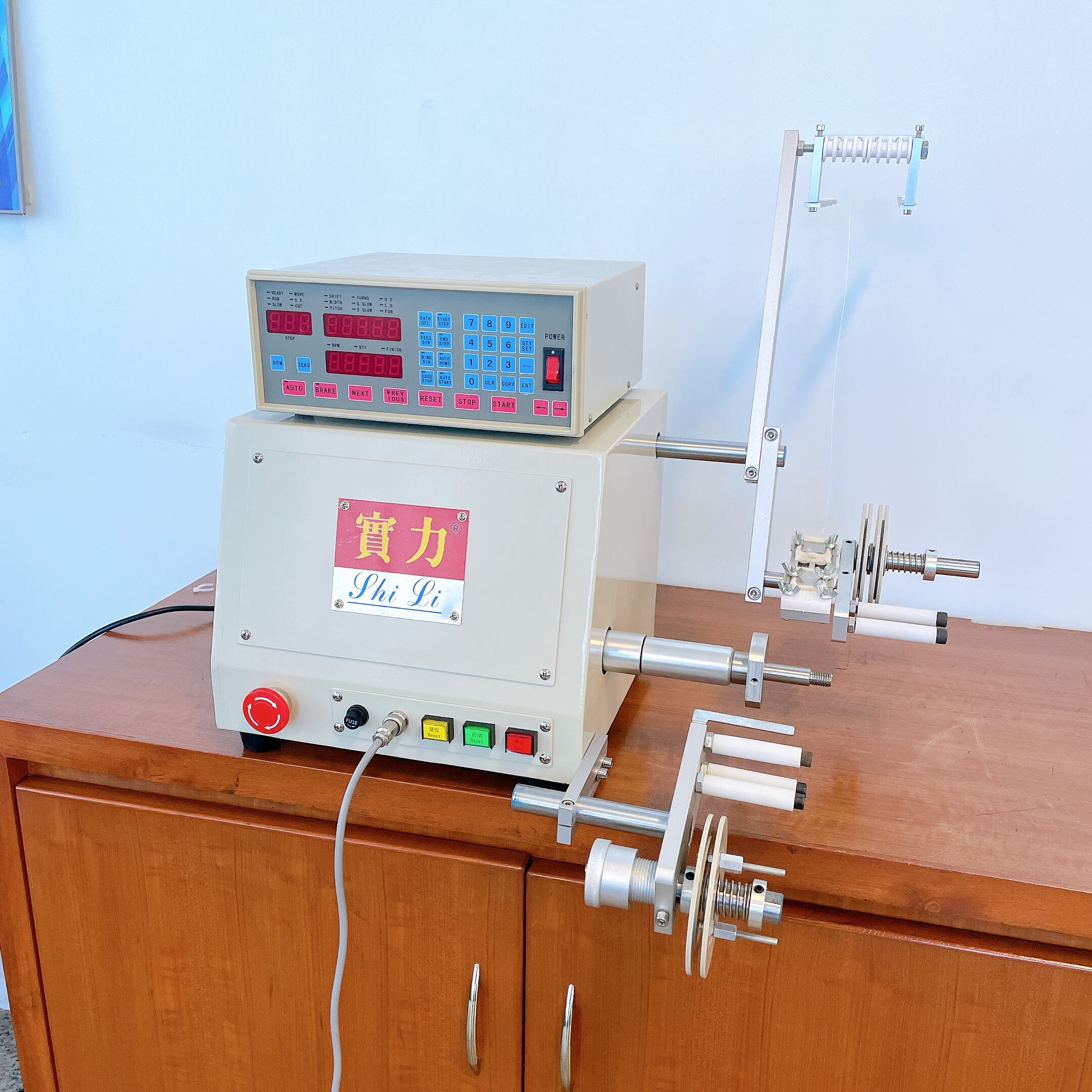

SHL-6800 Single Spindle Coil Winding Machine

Product description:

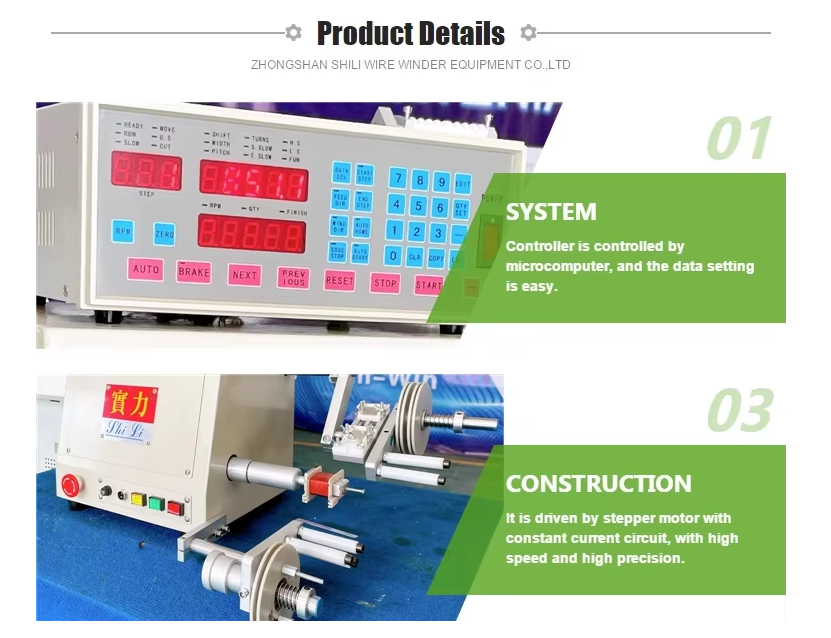

● Controller is controlled by microcomputer, and the data setting is easy.

● The winding spindle is driven by stepper motor with constant current circuit, with high speed and high precision.

● Winding point position can be taught to input and can display the current wire spindle position.

● Winding points can be set in sections. Width. wire distance speed, etc., in order to achieve multi - section multi - speed purpose.

Application range:

Switching power transformer, audio coil, inductance coil, relay coil low frequency transformer, etc.

Product specification:

Spindle number	1	Wire size range	0.03-0.8mm
Max loop diameter	110mm	Winding width	0-110mm
Speed range	0-6000RPM	Spindle motor	400W Brushless DC motor
Winding motor	Stepping motor	Input power	220V 50/60HZ
Package size	590450560mm	Gross weight	40KG



After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.

package 2.jpg 售后.jpg

FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
