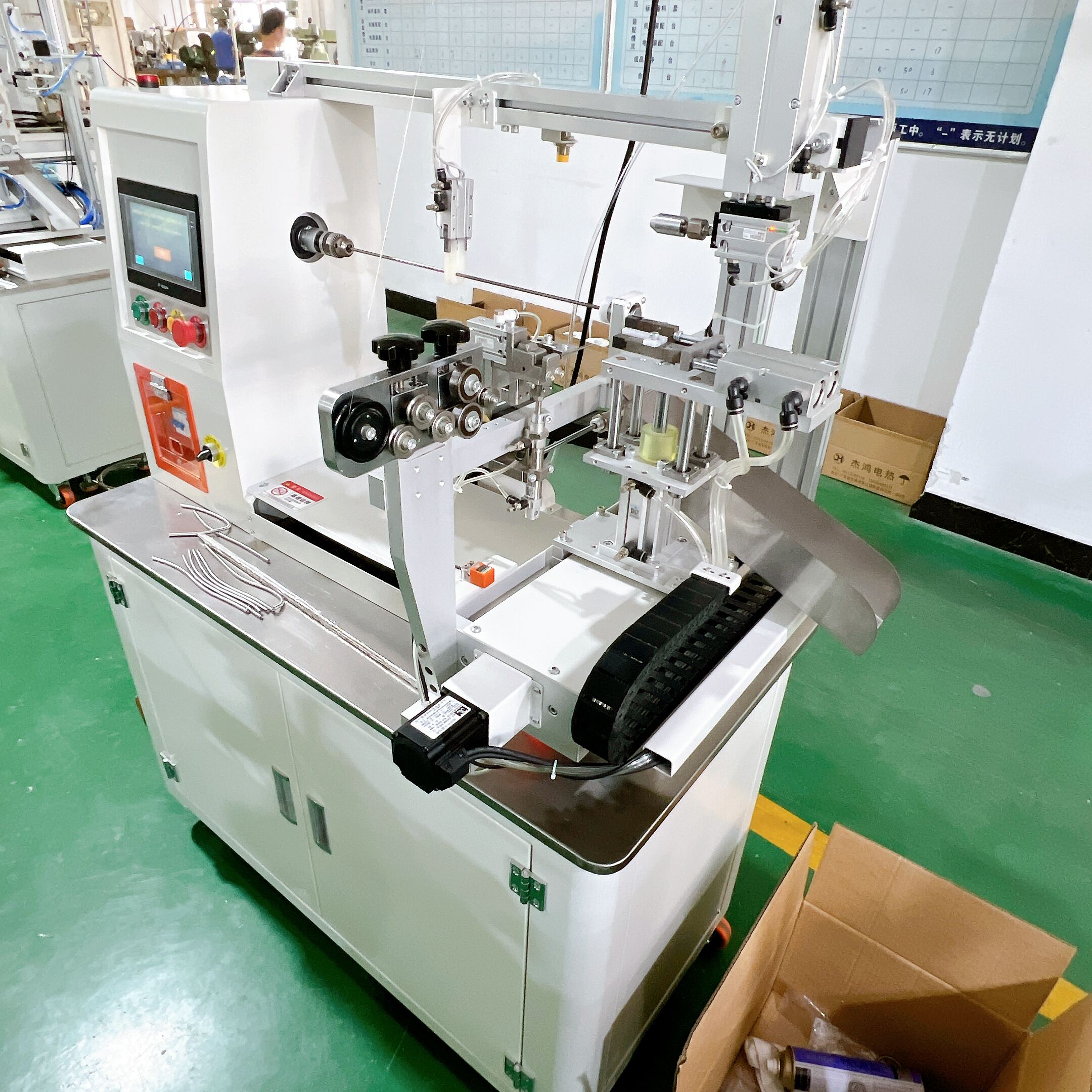

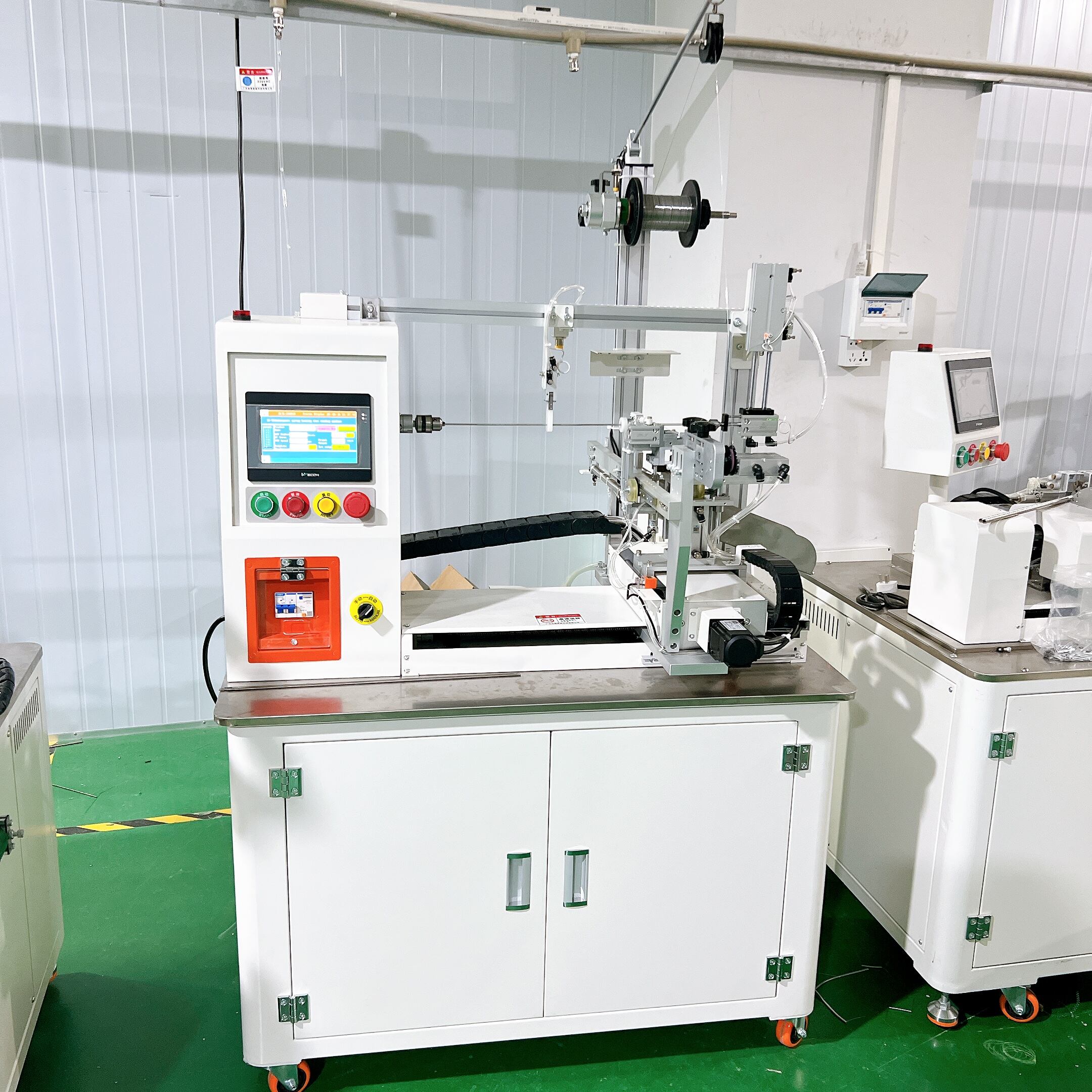

SHL-T240P Fully Auto Resistance Coil Winding Machine

Product description:

This equipment is applicable to the production of electric hair dryer heating core, electric hair comb heating core, heater heating core, hot air gun heating core, hand dryer heating core, clothes dryer heating core, popcorn machine heating core, aquarium rod heating core, heating disc heating core, heating tube heating core, quartz tube heating core and other products heating wire automatic winding.

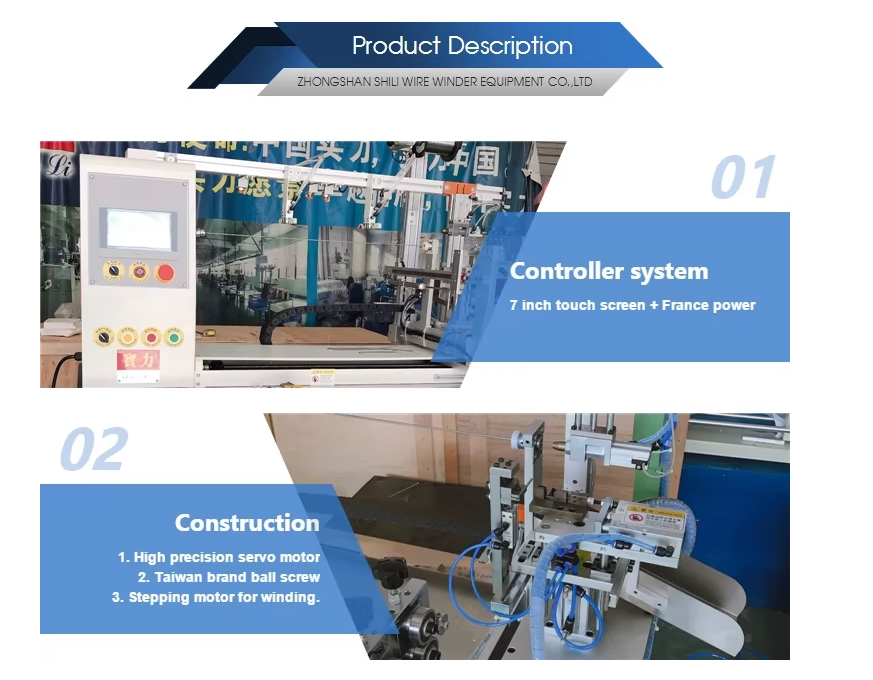

Machine configuration:

Spindle motor	High precision servo motor
Winding motor	Stepping motor
Wire sending motor	Stepping motor

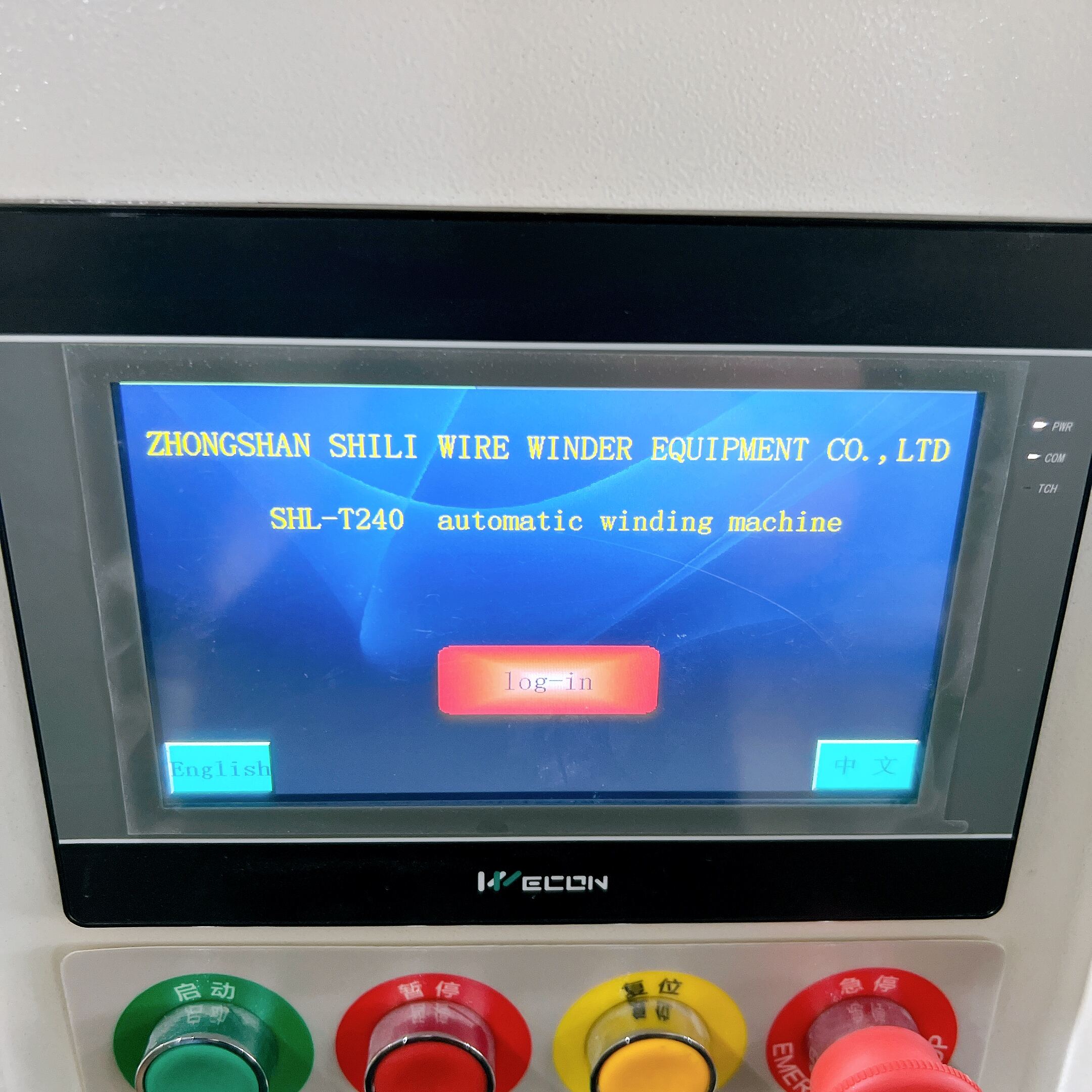

Controller system	7 inch touch screen + France power
Ball screw	Taiwan brand
Pneumatic element	Xingchen brand

Specification range:

Power	220V 50/HZ	Rod diameter	1.5-8mm
Motor power	1200W	Wire size range	0.12-1.0mm
Winding speed	100-5000rpm	Winding width	400、700、1000、1500mm
Machine size	Depends on the length	Winding Method	Single winding Multistage winding (1-40section)
Weight	Depends on the length	Wire head length	Front side15-80mm; Back side15-150mm



After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.

package 2.jpg 售后.jpg

FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
