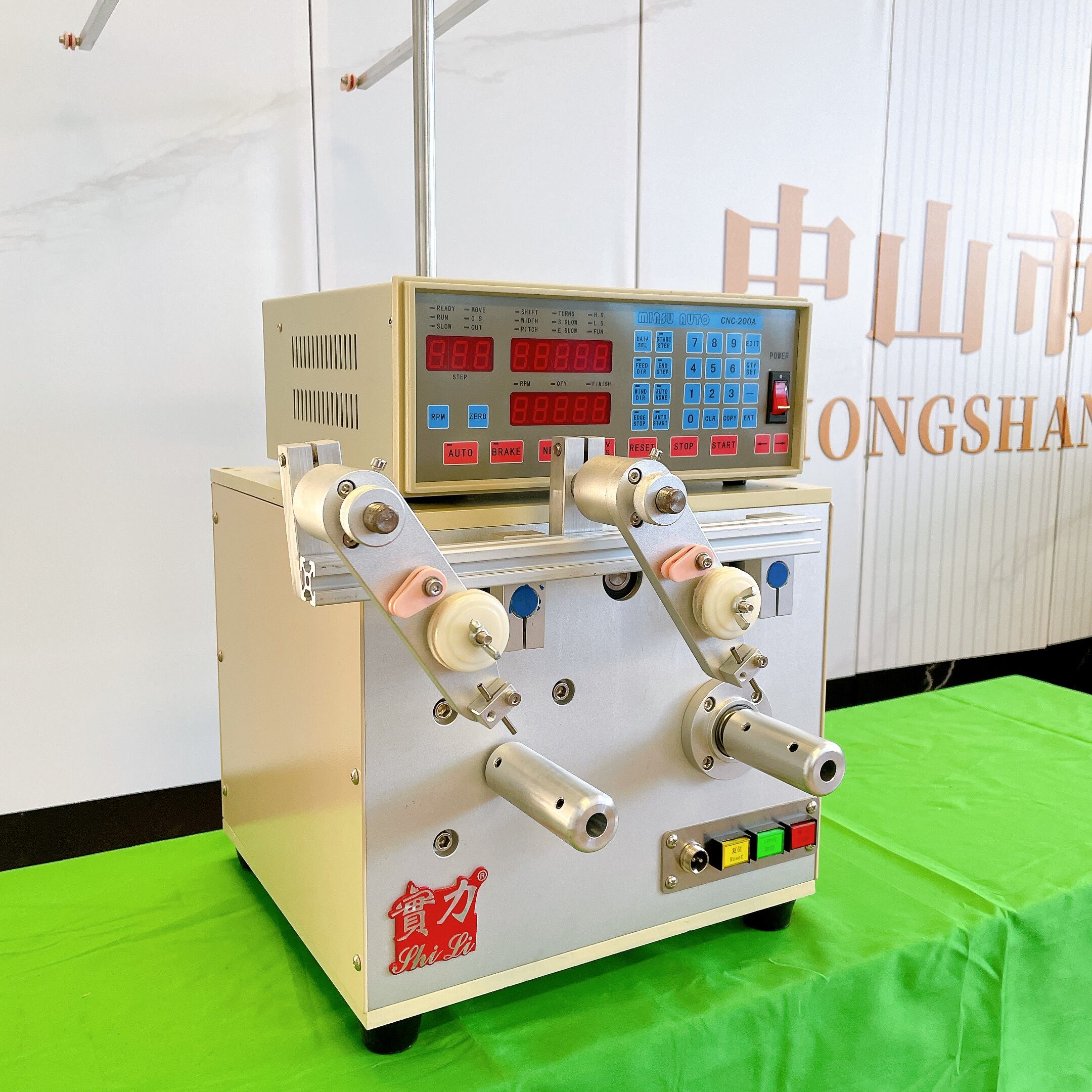

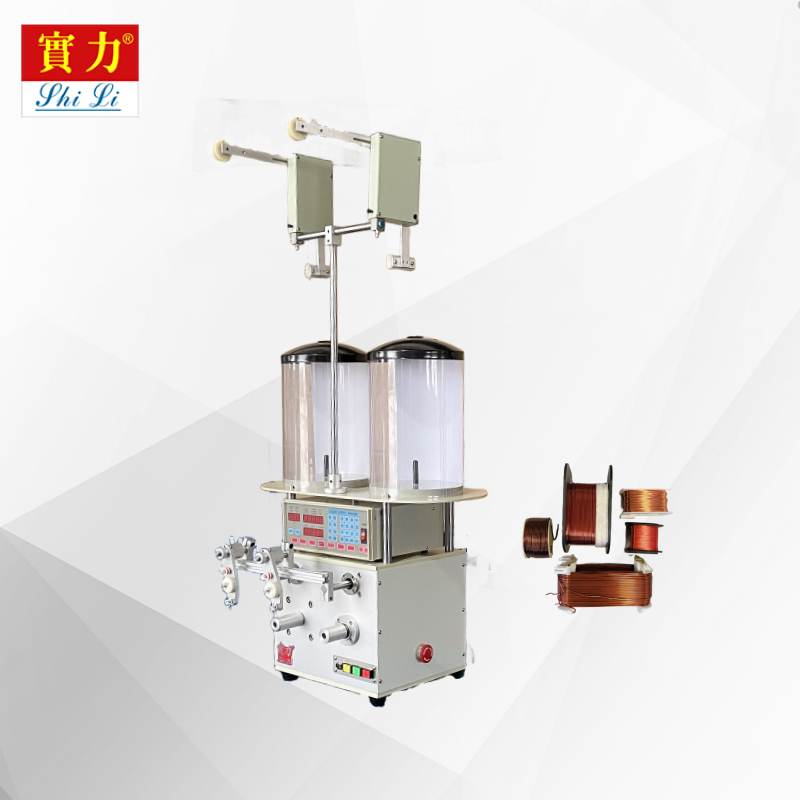

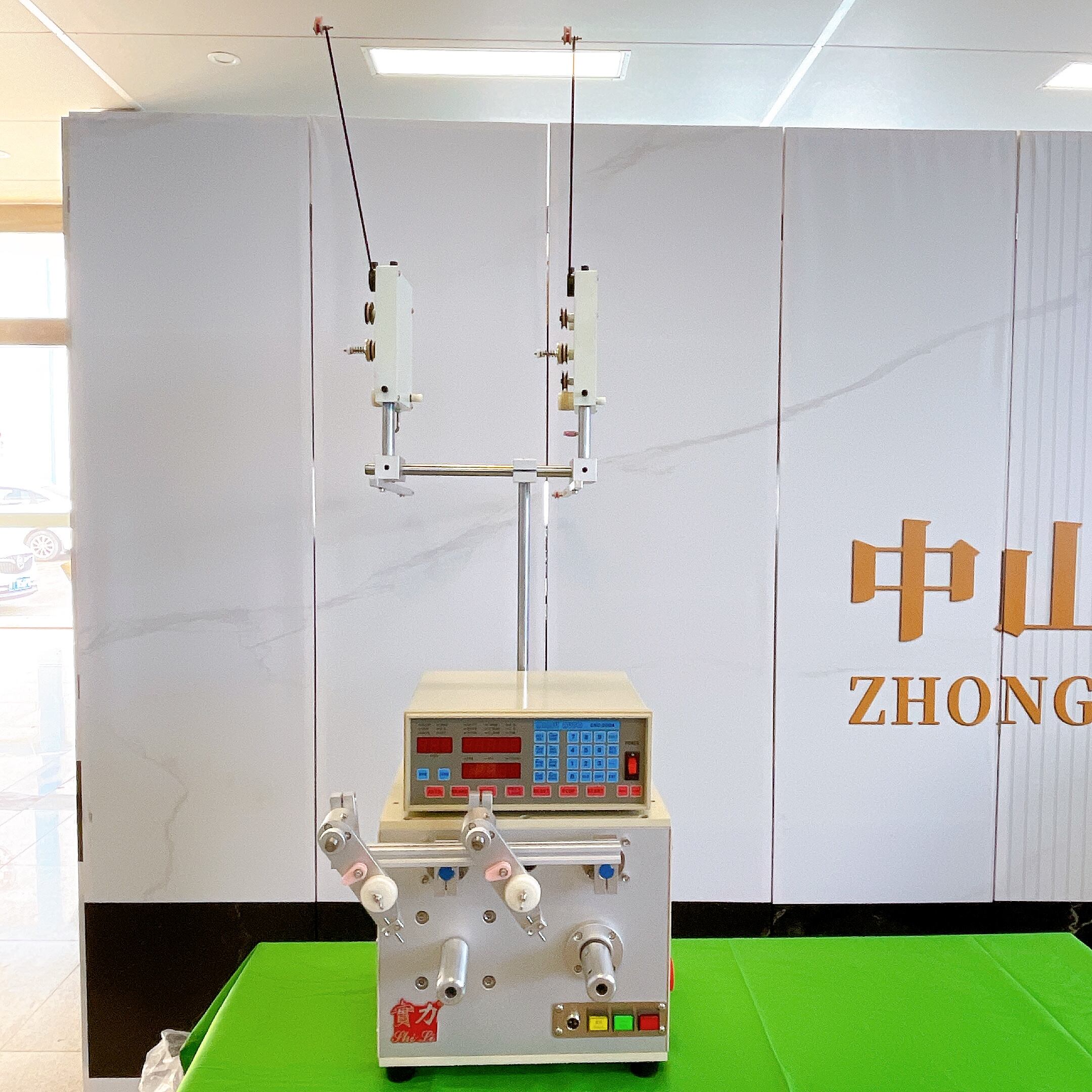

SRB23-2 Two Spindle Coil Auto Winding Machine

Product description:

✅ Adopt two axis synchronous operation, thick line mechanism design.

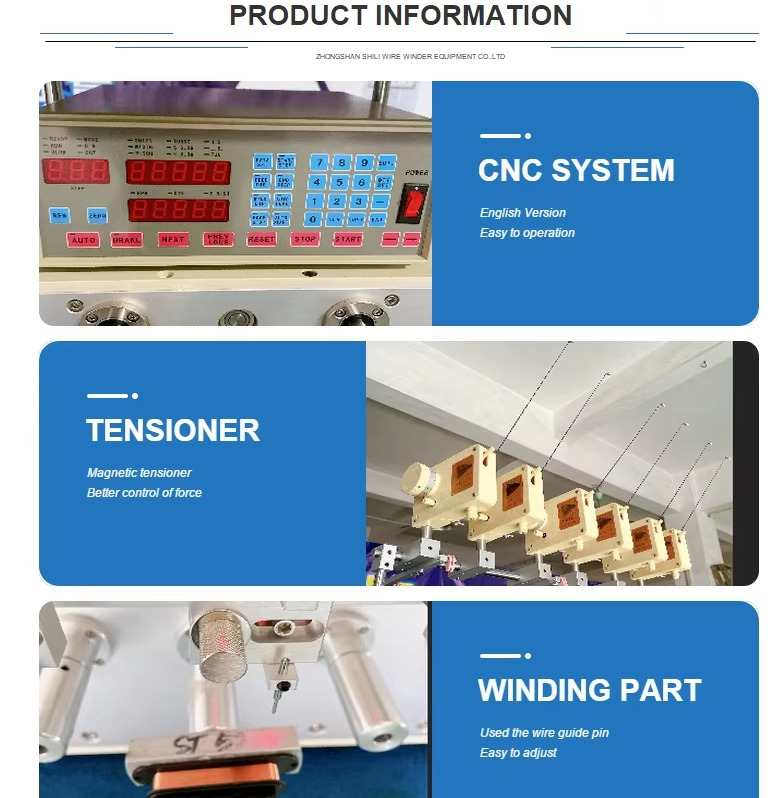

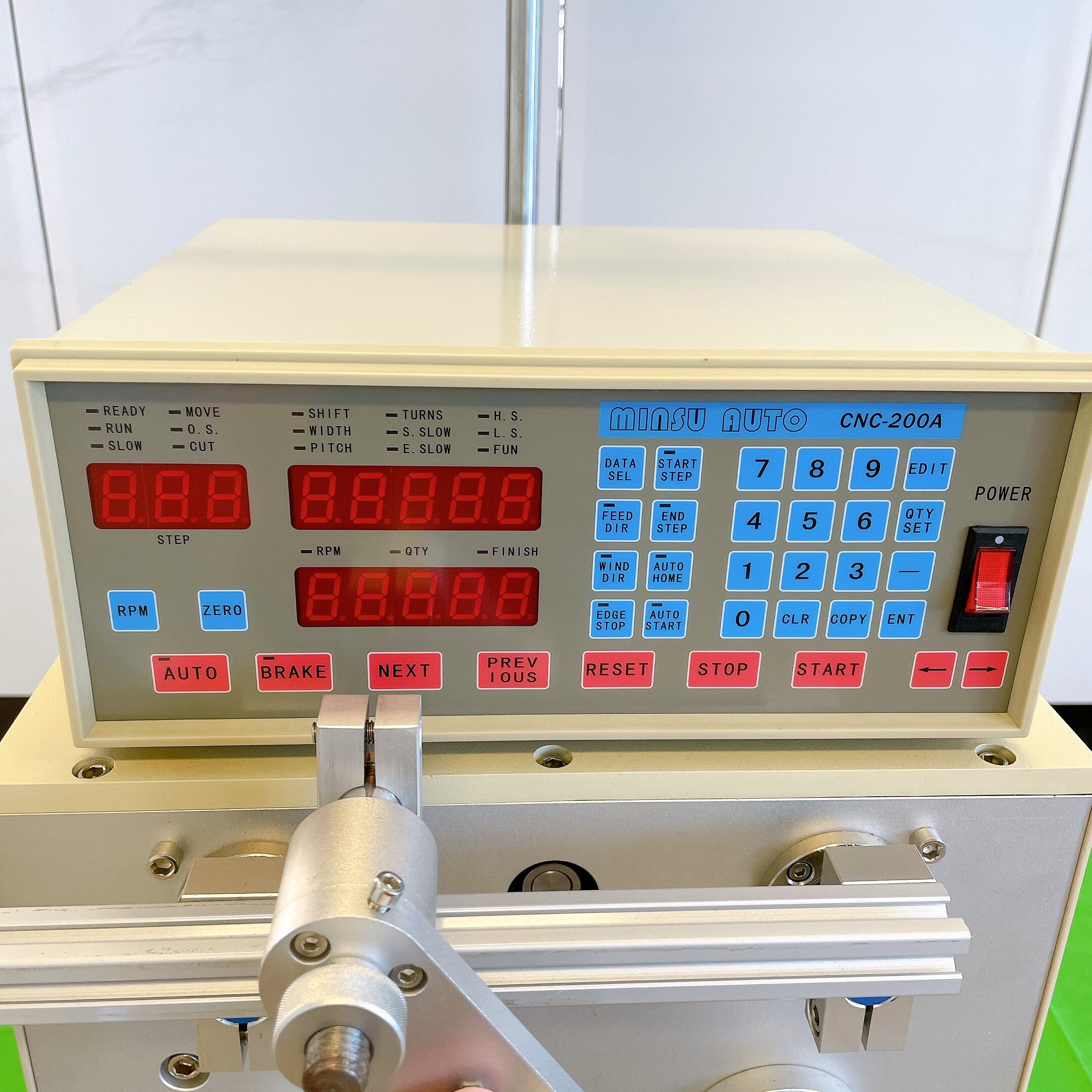

✅ Multi-function microcomputer design, data setting is easy, permanent storage, and has automatic speed limit, paused editing, both ends of the deceleration and other functions.

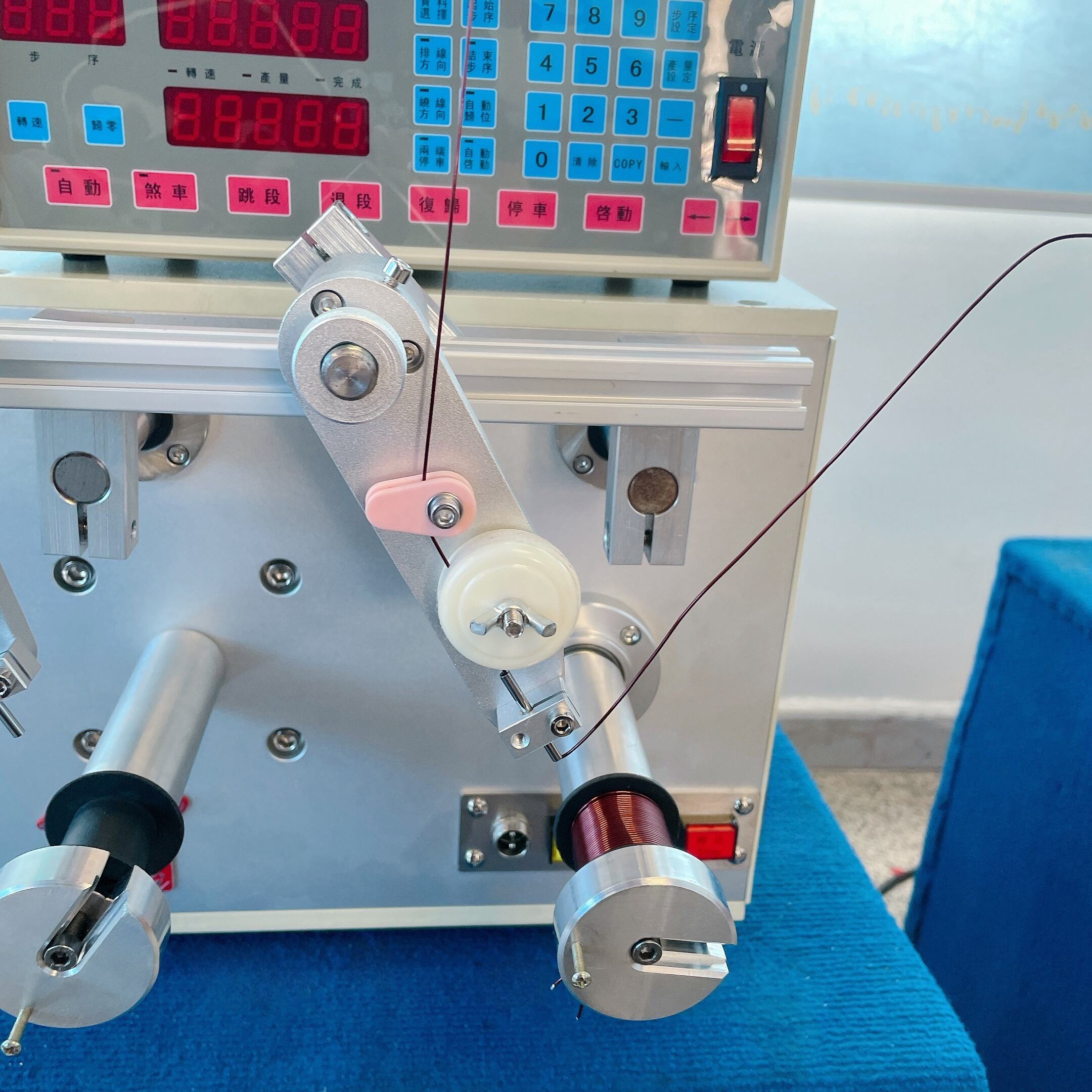

✅ The position of the reel can be used to teach the function, which can assist the setting of the winding point and the width position.

✅ 0-999 group step setting capacity, data storage is larger, more convenient.

Application range:

Low frequency transformer,water pump coil, solenoid valve coil, shade-pole motor, guitar pickup coil, switching power transformer and other coil products.

Product specification:

Spindle number	2	Wire size range	0.03-1.0mm.
Max loop diameter	150mm	Winding width	0-110mm
Speed range	0-6000RPM	Spindle motor	BLDC motor
Winding motor	Stepping motor	Input power	220V 50/60HZ
Machine size	430320430mm	Net weight	45KG



After-sales service:

⭐ For product problems, please provide us with photos or videos for our reference. Our after-sales service department will try our best to help to solve.

⭐ For technical support, we welcome you to send us your requirment and discuss with our professional technical support team.

package 2.jpg 售后.jpg

FAQ:

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.What is the power supply of the machine?

The standard power is 220v 50HZ/60HZ. It can be customized also.

3. About Payment：

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
